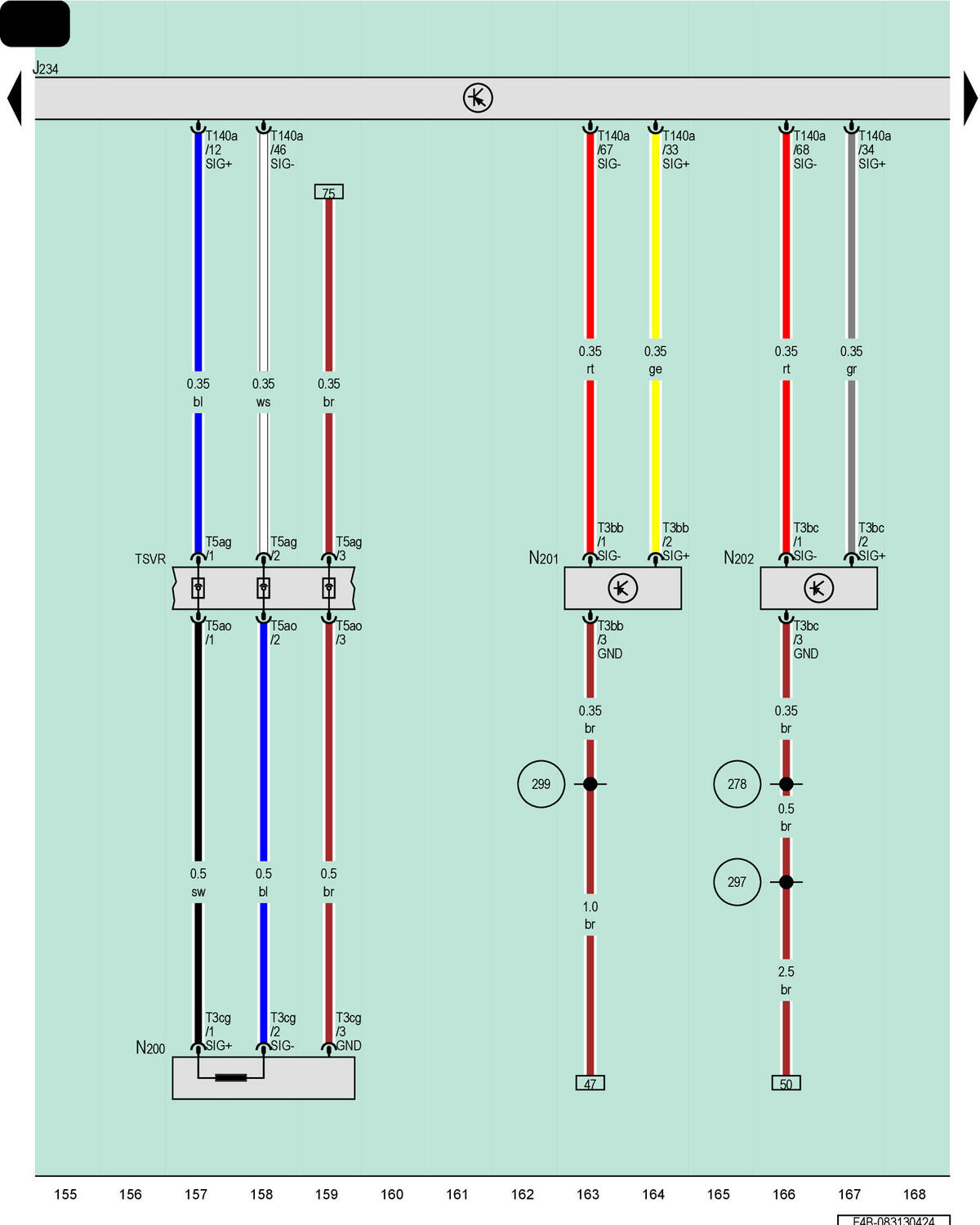

Airbag Control Module, Front Passenger Thorax Airbag Igniter, Driver Side Rear Thorax Airbag Igniter, Passenger Side Rear Thorax Airbag Igniter
J234
Airbag Control Module
N200
Front Passenger Thorax Airbag Igniter
N201
Driver Side Rear Thorax Airbag Igniter
N202
Passenger Side Rear Thorax Airbag Igniter
T3bb
3-Pin Connector, Yellow
T3bc
3-Pin Connector, Yellow
T3cg
3-Pin Connector, Yellow
T5ag
5-Pin Connector, Yellow
T5ao
5-Pin Connector, Yellow
T140a
140-Pin Connector, Yellow
TSVR
Right Front Seat Coupling Station
278
Ground Connection 4 (in Interior Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
299
Ground Connection 14 (in Interior Wiring Harness)
