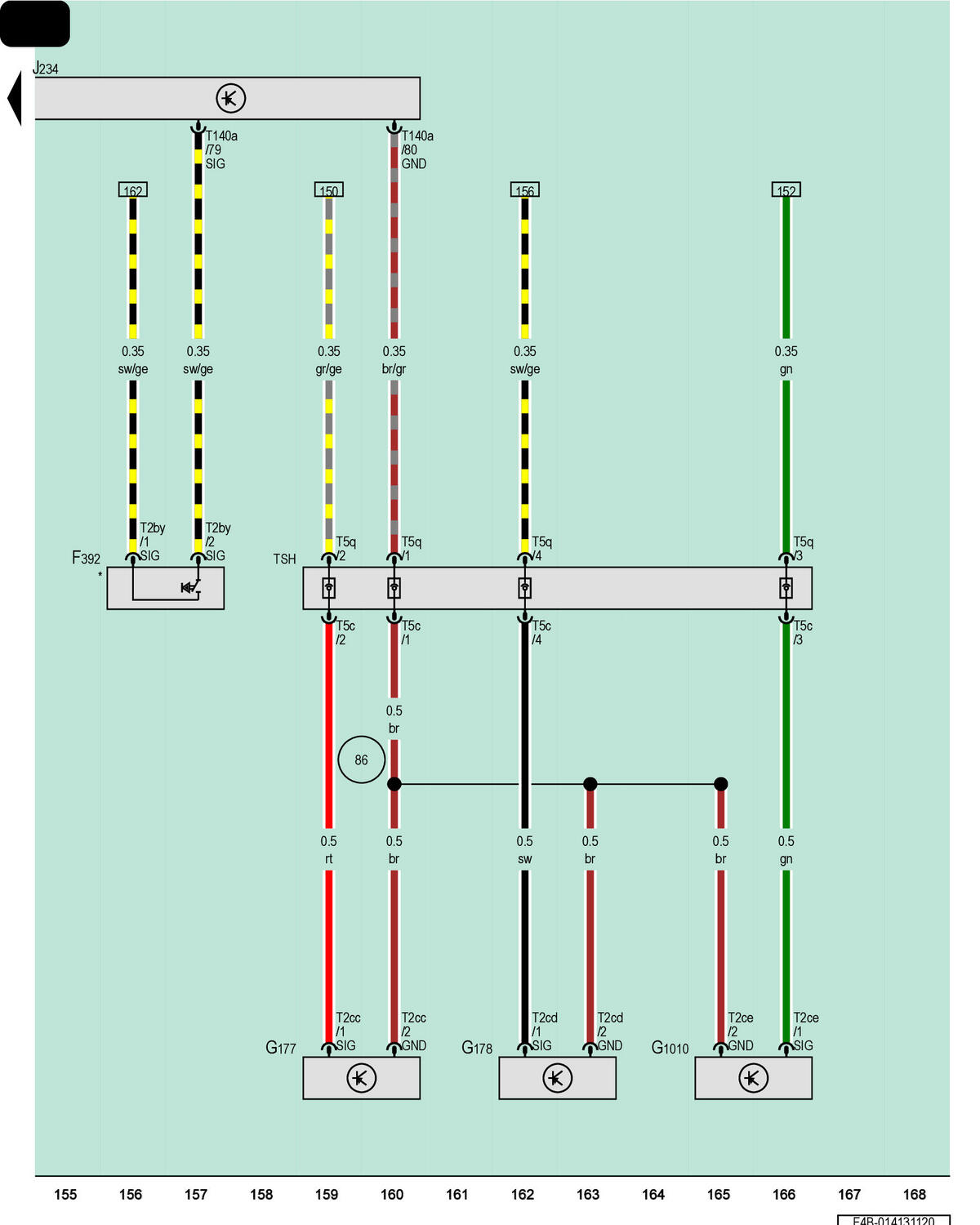

Passenger Side Second Row Seat Belt Switch, Driver Side Rear Seat Occupant Detection Sensor, Passenger Side Rear Seat Occupant Detection Sensor, Rear Center Seat Occupant Detection Sensor, Airbag Control Module
F392
Passenger Side Second Row Seat Belt Switch
G177
Driver Side Rear Seat Occupant Detection Sensor
G178
Passenger Side Rear Seat Occupant Detection Sensor
G1010
Rear Center Seat Occupant Detection Sensor
J234
Airbag Control Module
T2by
2-Pin Connector, Black
T2cc
2-Pin Connector, White
T2cd
2-Pin Connector, White
T2ce
2-Pin Connector, White
T5c
5-Pin Connector, Black
T5q
5-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSH
Rear Seat Coupling Point
86
Ground Connection 1 (in Rear Wiring Harness)
*
Pre-Wired Component
