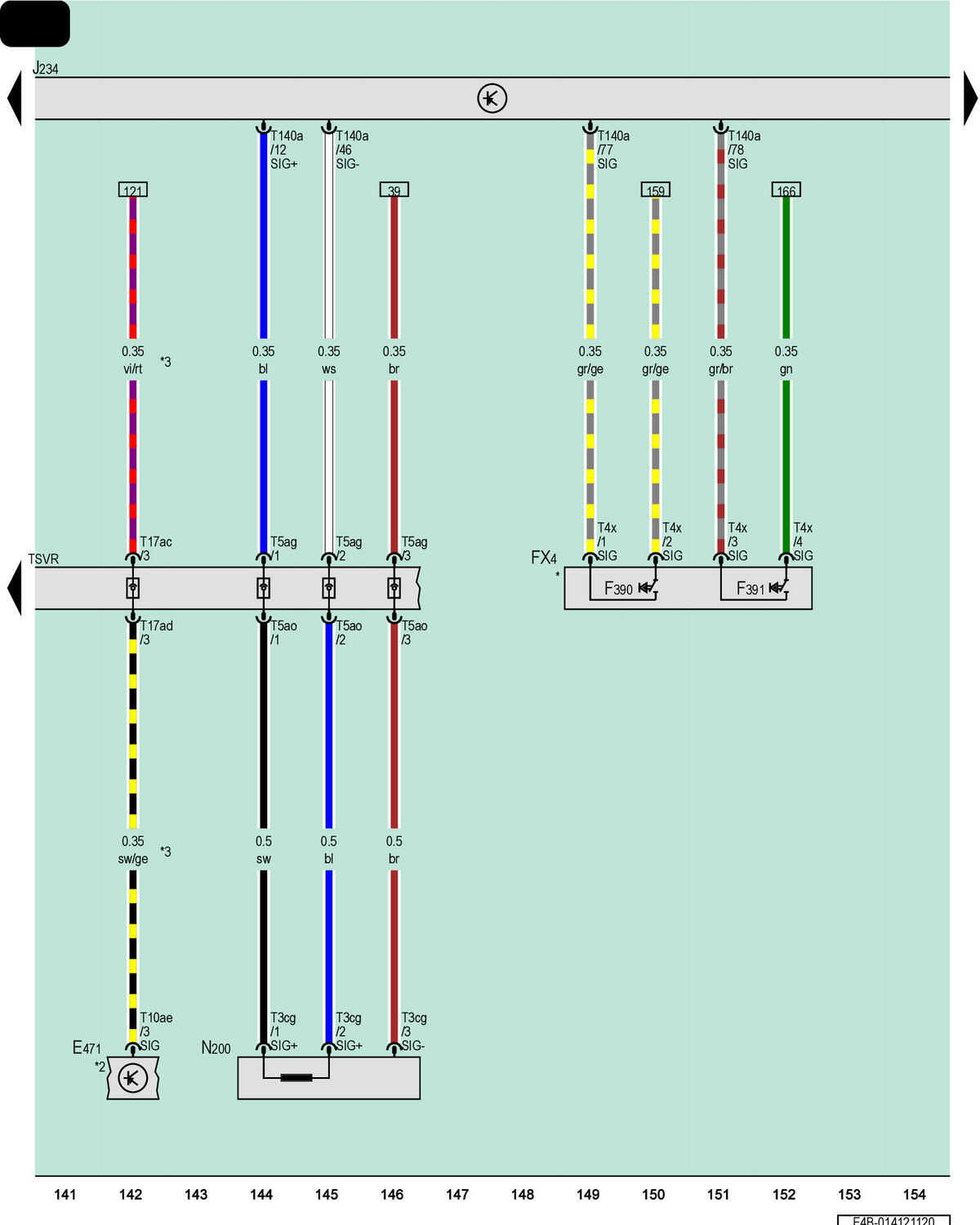

Front Passenger Seat Adjustment Control Head, Dual Seat Belt Latch, Airbag Control Module, Front Passenger Thorax Airbag Igniter

Courtesy of AUDI OF AMERICA, LLC

E471

Front Passenger Seat Adjustment Control Head

FX4

Dual Seat Belt Latch

F390

Driver Side Second Row Seat Belt Switch

F391

Center Second Row Seat Belt Switch

J234

Airbag Control Module

N200

Front Passenger Thorax Airbag Igniter

T3cg

3-Pin Connector, Yellow

T4x

4-Pin Connector, Black

T5ag

5-Pin Connector, Yellow

T5ao

5-Pin Connector, Yellow

T10ae

10-Pin Connector, Black

T17ac

17-Pin Connector, Red

T17ad

17-Pin Connector, Red

T140a

140-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

*

Pre-Wired Component

*2

Refer to Applicable Wiring Diagram for the Front Passenger Seat

*3

For Vehicles with Power Passenger Seat Adjuster
