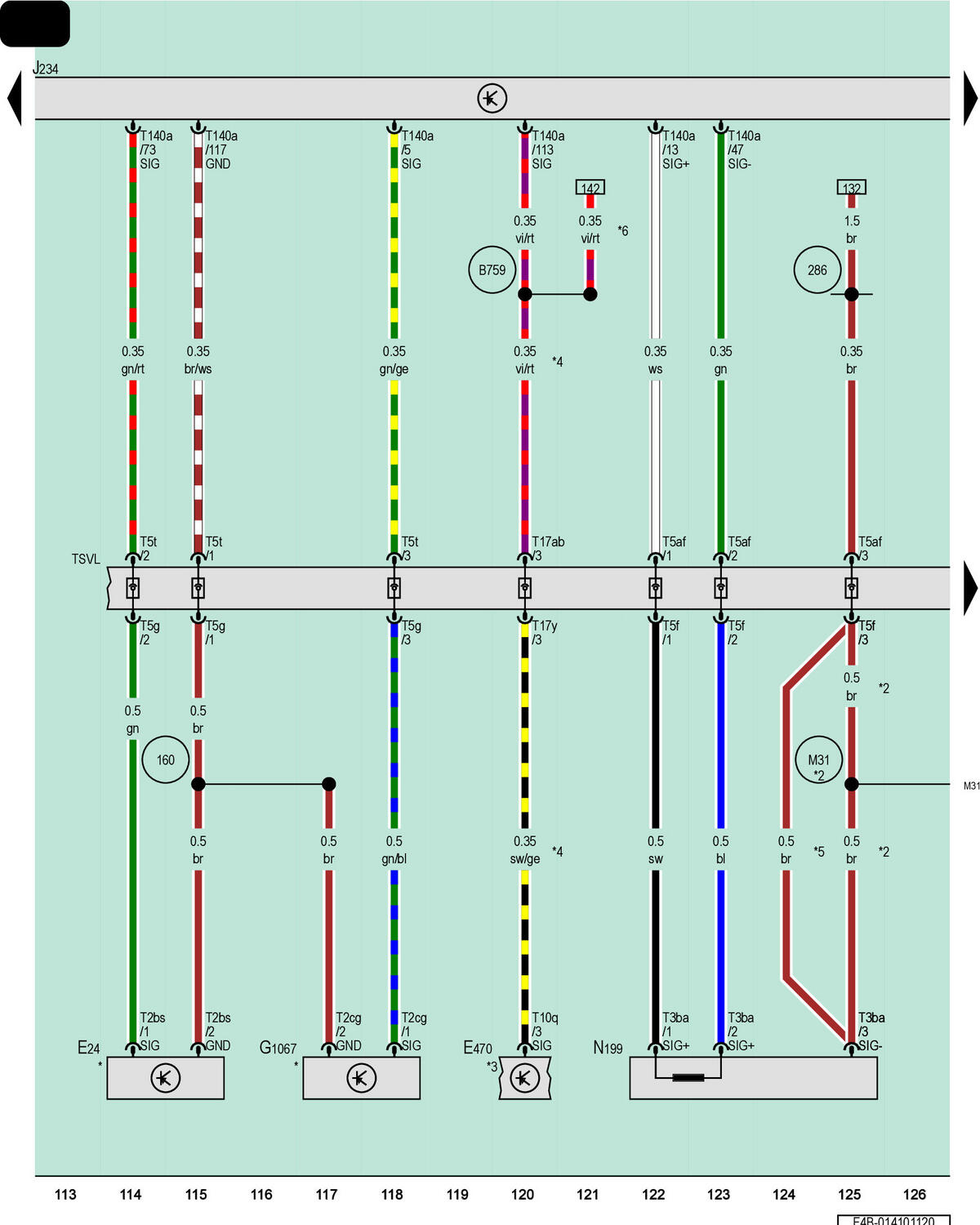

Driver Seat Belt Switch, Driver Seat Adjustment Control Head, Driver Side Seat Occupant Detection Sensor, Airbag Control Module, Driver Thorax Airbag Igniter
E24
Driver Seat Belt Switch
E470
Driver Seat Adjustment Control Head
G1067
Driver Side Seat Occupant Detection Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
T2bs
2-Pin Connector, Black
T2cg
2-Pin Connector, White
T3ba
3-Pin Connector, Yellow
T5af
5-Pin Connector, Yellow
T5f
5-Pin Connector, Yellow
T5g
5-Pin Connector, Black
T5t
5-Pin Connector, Black
T10q
10-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17y
17-Pin Connector, Red
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
160
Ground Connection (in Seat Belt Tensioner Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
B759
Crash Signal Connection (in Main Wiring Harness)
M31
Connection 75 (in Convertible Top Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Advanced Safety Systems
*3
Refer to Applicable Wiring Diagram for the Driver Seat
*4
For Vehicles with Power Driver Seat Adjuster
*5
For Vehicles without Advanced Safety Systems
*6
For Vehicles with Power Passenger Seat Adjuster
