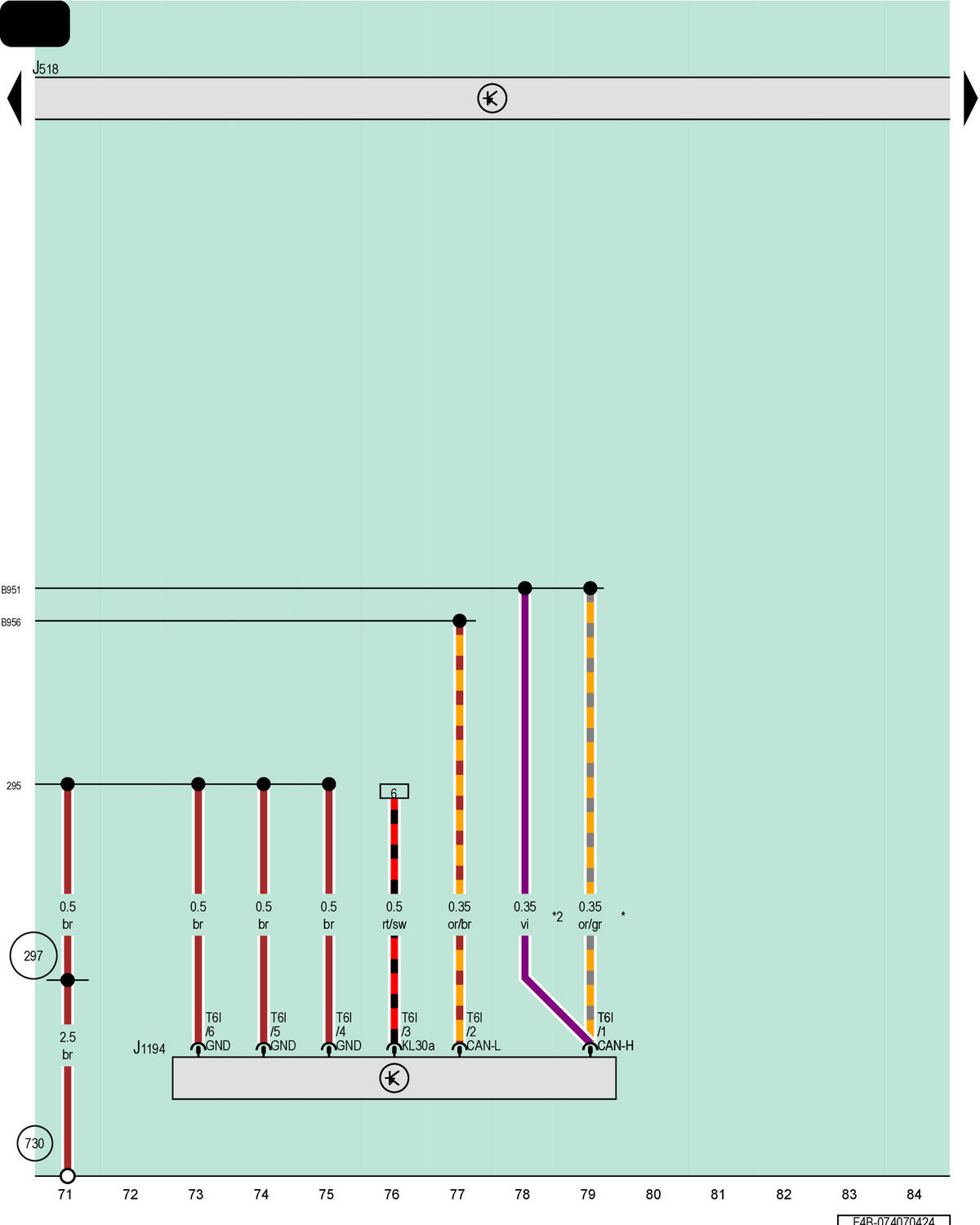

Access/Start Authorization Control Module, Burglary Protection Control Module 4
J518
Access/Start Authorization Control Module
J1194
Burglary Protection Control Module 4
T6l
6-Pin Connector, Black
295
Ground Connection 10 (in Interior Wiring Harness)
297
Ground Connection 12 (in Interior Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
B951
Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness
B956
Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness
*
Through June 2024
*2
From June 2024
