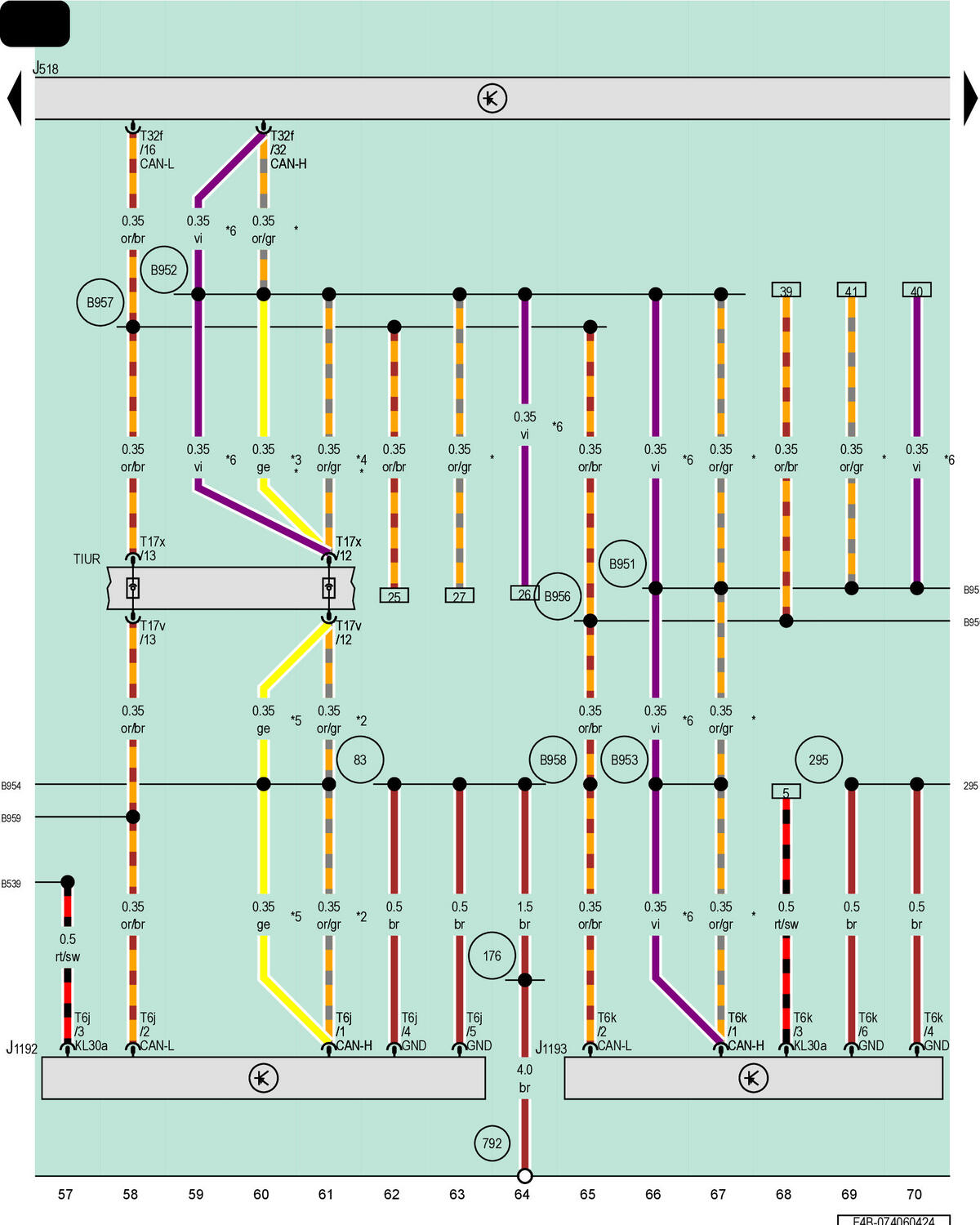

Access/Start Authorization Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3
J518
Access/Start Authorization Control Module
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
T6j
6-Pin Connector, Black
T6k
6-Pin Connector, Black
T17v
17-Pin Connector, Brown
T17x
17-Pin Connector, Brown
T32f
32-Pin Connector, Gray
TIUR
Coupling Point in Interior, Bottom Right
83
Ground Connection 1 (in Right Front Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
295
Ground Connection 10 (in Interior Wiring Harness)
792
Ground Connection in Right Front Wheel Housing
B539
Connection 30 (in Main Wiring Harness)
B951
Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness
B952
Connection 3 (CAN Bus Connectivity High) in Main Wiring Harness
B953
Connection 4 (CAN Bus Connectivity High) in Main Wiring Harness
B954
Connection 5 (CAN Bus Connectivity High) in Main Wiring Harness
B956
Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness
B957
Connection 3 (CAN Bus Connectivity Low) in Main Wiring Harness
B958
Connection 4 (CAN Bus Connectivity Low) in Main Wiring Harness
B959
Connection 5 (CAN Bus Connectivity Low) in Main Wiring Harness
*
Through June 2024
*2
Through September 2023
*3
From July 2022
*4
Through July 2022
*5
From September 2023
*6
From June 2024
