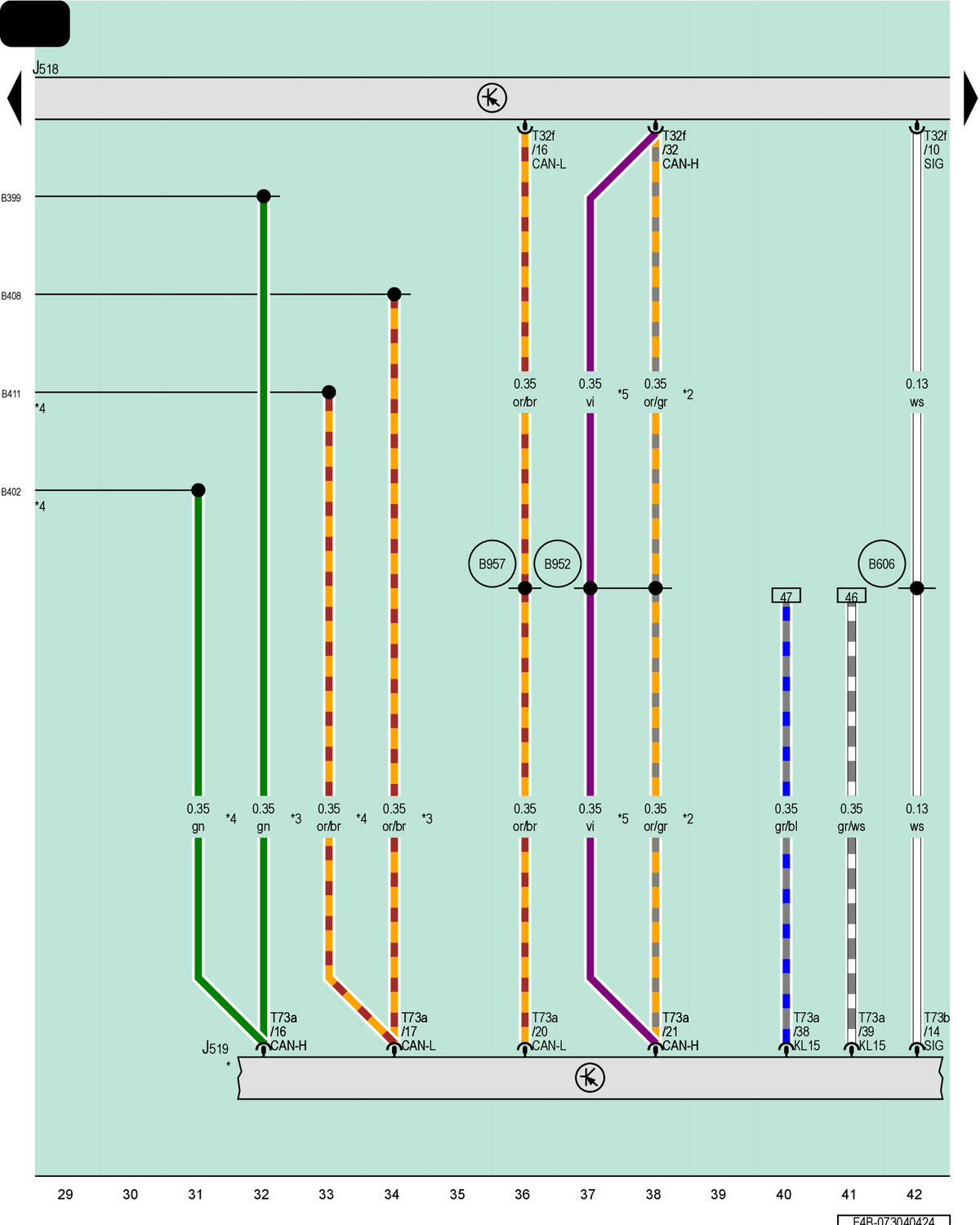

Access/Start Authorization Control Module, Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

J518

Access/Start Authorization Control Module

J519

Vehicle Electrical System Control Module

T32f

32-Pin Connector, Gray

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

B399

Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)

B402

Comfort System CAN Bus, High Connection 6 (in Main Wiring Harness)

B408

Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)

B411

Comfort System CAN Bus, Low Connection 6 (in Main Wiring Harness)

B606

Connection 2 (in Interior Wiring Harness)

B952

Connection 3 (CAN Bus Connectivity High) in Main Wiring Harness

B957

Connection 3 (CAN Bus Connectivity Low) in Main Wiring Harness

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Through June 2024

*3

For Vehicles Without UNECE Cyber Security

*4

For Vehicles with UNECE Cyber Security

*5

From June 2024
