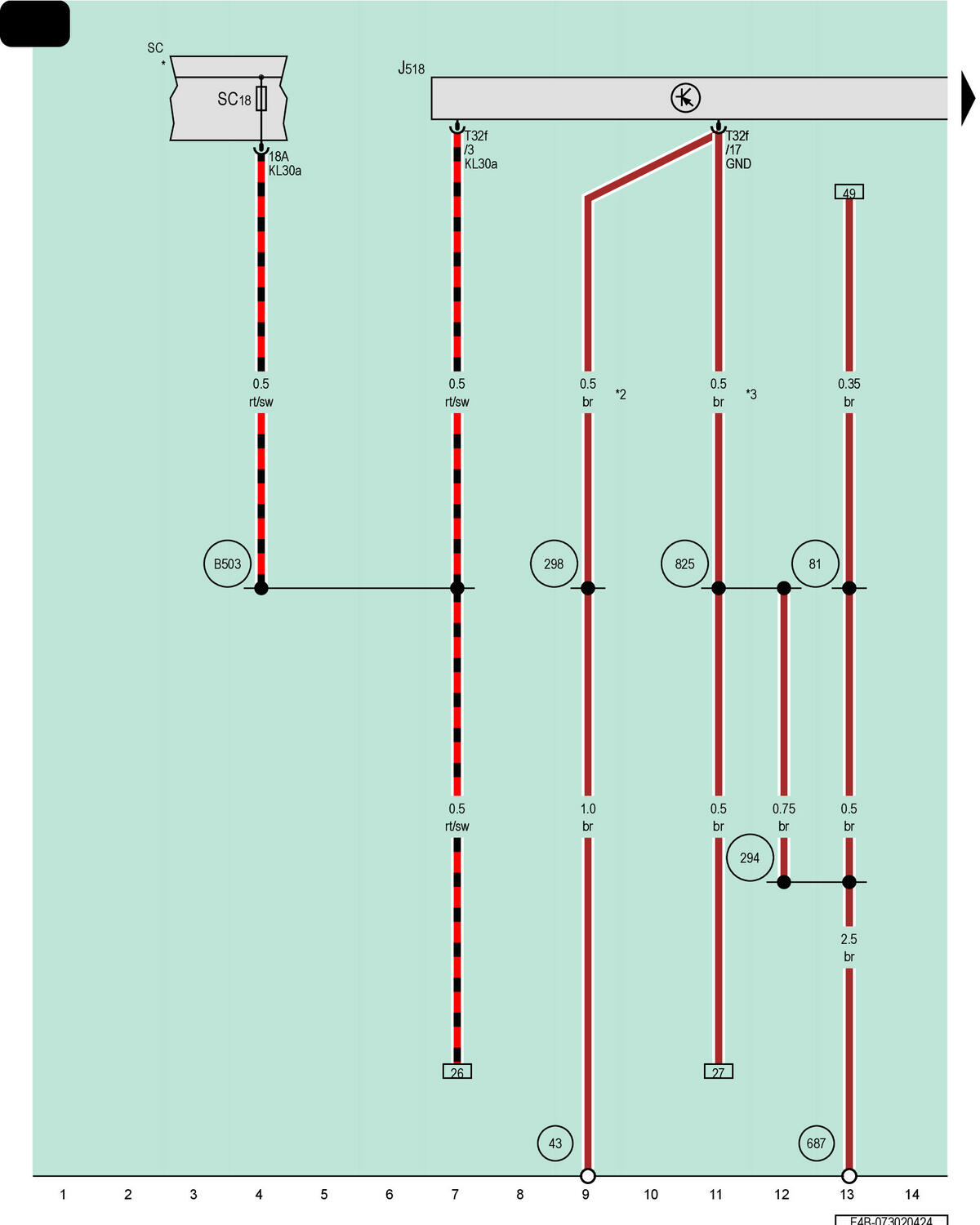

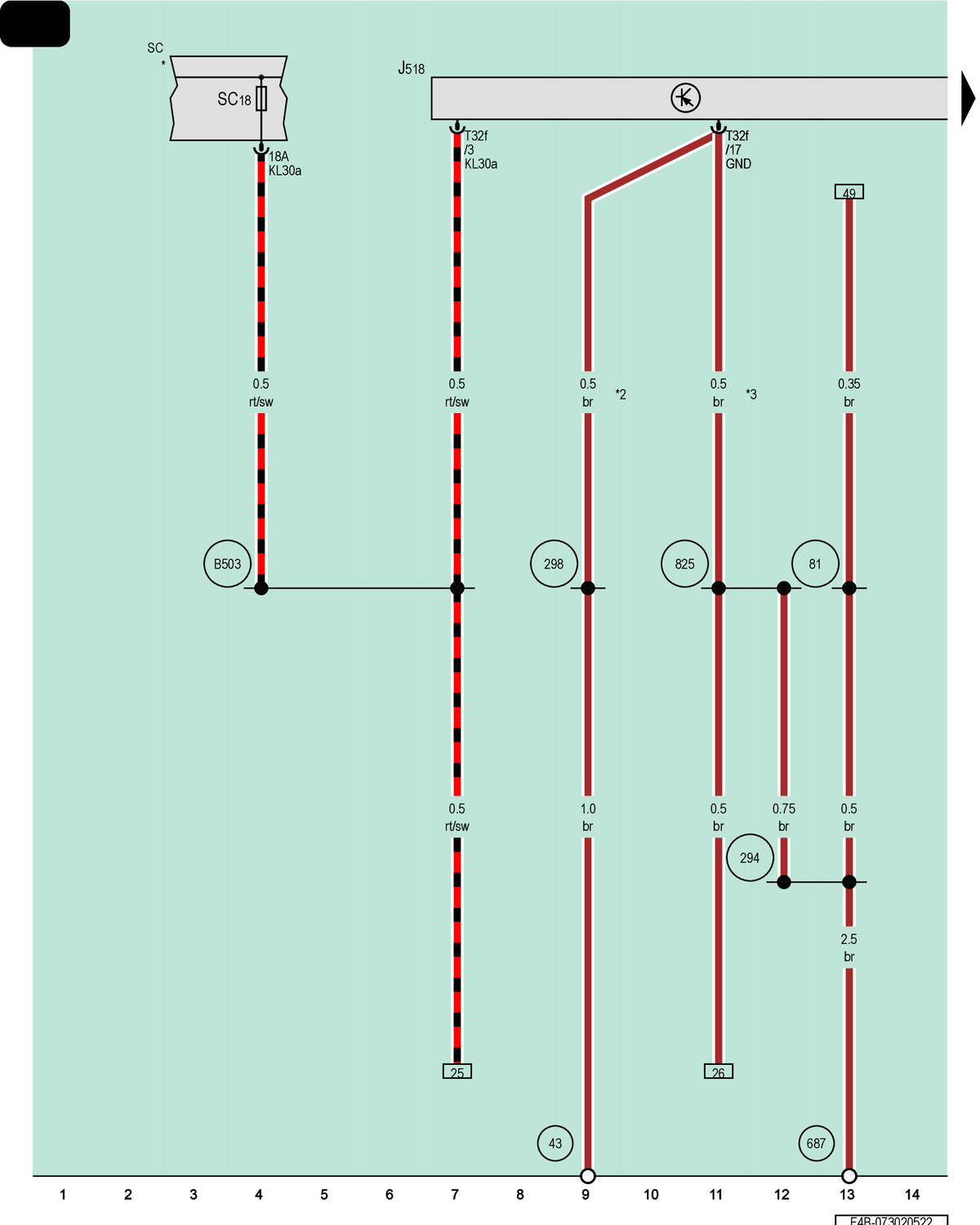

Access/Start Authorization Control Module, Fuse Panel C
J518
Access/Start Authorization Control Module
SC
Fuse Panel C
SC18
Fuse 18 (On Fuse Panel C)
T32f
32-Pin Connector, Gray
43
Ground Connection on A-Pillar, Lower Right
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
298
Ground Connection 13 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
825
Ground Connection 18 (in Interior Wiring Harness)
B503
Positive Connection 7 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
For RHD Vehicles
*3
For LHD Vehicles
