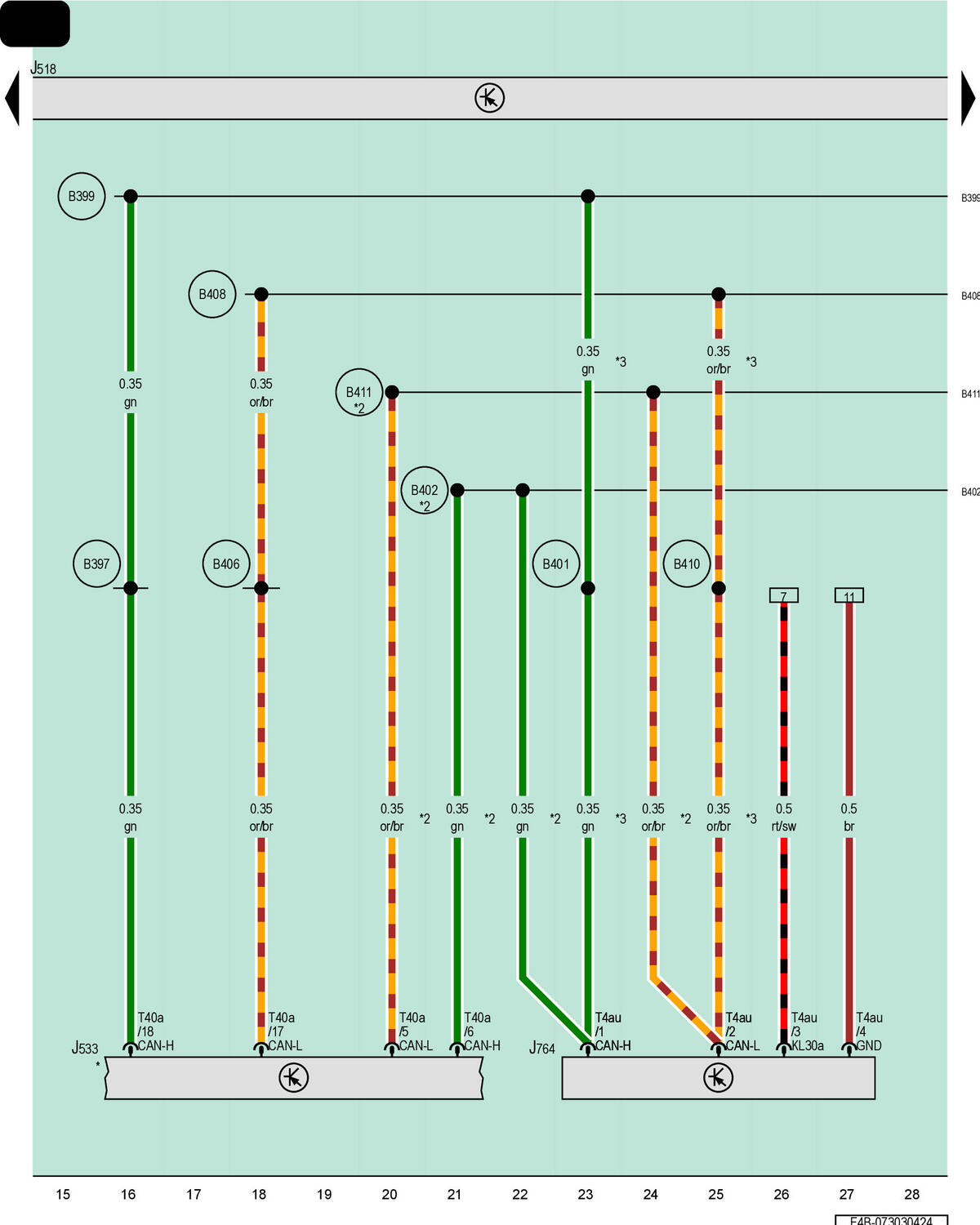

Access/Start Authorization Control Module, Data Bus On Board Diagnostic Interface, Electronic Steering Column Lock Control Module

Courtesy of AUDI OF AMERICA, LLC

J518

Access/Start Authorization Control Module

J533

Data Bus on Board Diagnostic Interface

J764

Electronic Steering Column Lock Control Module

T4au

4-Pin Connector, Black

T40a

40-Pin Connector, Black

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B399

Comfort System CAN Bus, High Connection 3 (in Main Wiring Harness)

B401

Comfort System CAN Bus, High Connection 5 (in Main Wiring Harness)

B402

Comfort System CAN Bus, High Connection 6 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

B408

Comfort System CAN Bus, Low Connection 3 (in Main Wiring Harness)

B410

Comfort System CAN Bus, Low Connection 5 (in Main Wiring Harness)

B411

Comfort System CAN Bus, Low Connection 6 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Data Bus Networking

*2

For Vehicles with UNECE Cyber Security

*3

For Vehicles Without UNECE Cyber Security
