Overview - Coolant Valves

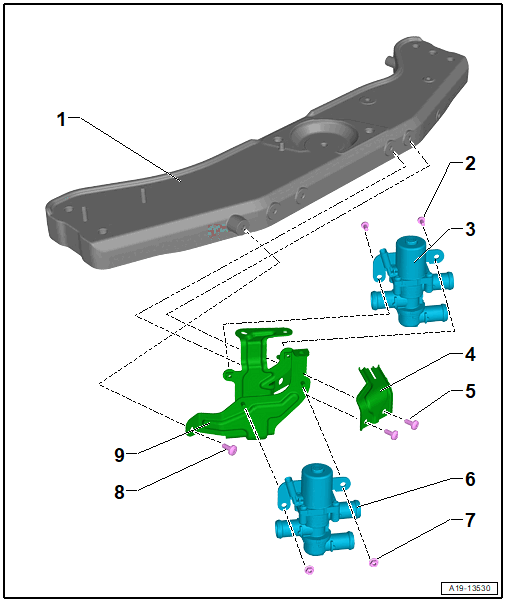

Fig 1: Exploded View Of Coolant Valves, AWD

Courtesy of AUDI OF AMERICA, LLC

Crossmember
Bolt
- Quantity: 2
- 8 Nm
Mixing Valve 2 for High-Voltage Battery Warming -V696-
- Installed depending on vehicle equipment
- Refer to COMPONENT LOCATION OVERVIEW - COOLANT PUMP/THERMOSTAT .
Coolant Pump Bracket
Bolt
- Refer to Overview - Electric Coolant Pump .
Mixing Valve for High-Voltage Battery Warming -V683-
- Refer to MIXING VALVE FOR HIGH-VOLTAGE BATTERY WARMING V683, REMOVING AND INSTALLING, AWD .
Nut
- Quantity: 2
- 8 Nm
Bolt
- 8 Nm
Bracket for Coolant Valve
