Overview - Motor Control Module

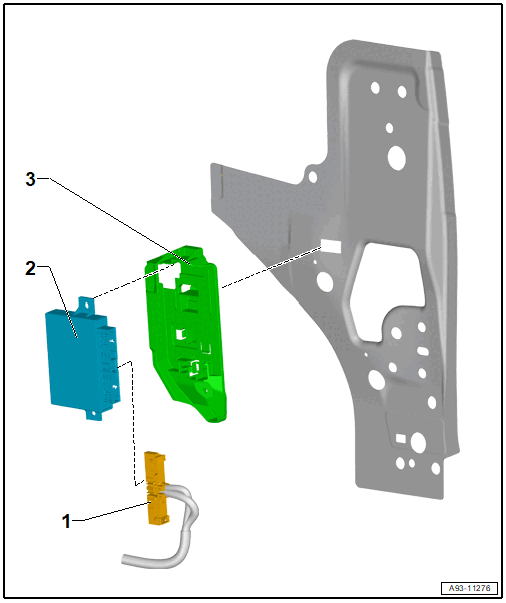

Fig 1: Exploded View Of Motor Control Module
GWWA93-11276Courtesy of AUDI OF AMERICA, LLC
  1. Connector
  2. Engine/Motor Control Module -J623-
  3. Engine/Motor Control Module Bracket
