Overview - Electric Drive Power And Control Electronics, Front

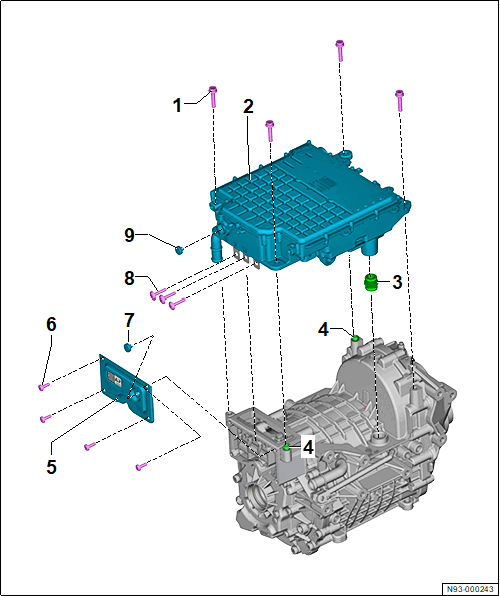

Fig 1: Exploded View Of Electric Drive Power And Control Electronics, Front (EDDA, EDFA)

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Quantity: 4
   • Replace after removing
   • 16 Nm +90°
2. Electric Drive Power and Control Electronics 2 -JX4-
   • With Electric Drive Control Module 2 -J944-
   • With Intermediate Circuit Capacitor 2 -C26-
   • With Drive Motor Inverter 2 -A55-
   • Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, FRONT, REMOVING AND INSTALLING  .
3. Connecting Piece
   • Replace after removing
4. Alignment Sleeve
   • Quantity: 2
5. Cap
   • Replace after removing
6. Bolt
   • Tighten in a diagonal sequence
   • Quantity: 4
   • Replace after removing
   • 8 Nm +45°
7. Breather Valve
   • Replace after removing
8. Bolt
   • Quantity: 3
   • Replace after removing
   • 8 Nm +90°
9. Breather Valve
   • Replace after removing
