Electric Drive Power And Control Electronics, Front, Removing And Installing: Notes

Special tools and workshop equipment required

• Cover :T10661/1
• Cover :T10661/2
• Brass Wire Brush :VAS 294 025
• Scraper :VAS 294 027

The Electric Drive Power and Control Electronics 2 -JX4- will be called the power electronics in the information that follows.

The Three-Phase Current Drive 2 -VX97- will be called the three-phase current drive in the information that follows.

Power electronics, removing

-- Refer to FRONT MOTOR, REMOVING, LHD .

-- Refer to MOTOR, SECURING TO ENGINE AND TRANSMISSION HOLDER, FRONT MOTOR .

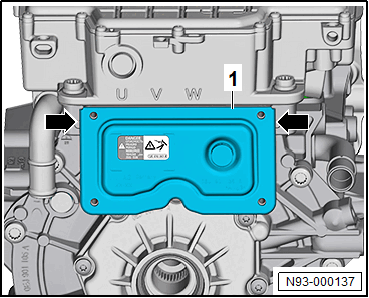

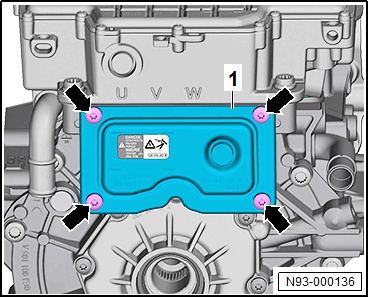

-- Remove the bolts -arrows- for the cap -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the cap -1- at the shown locations -arrows-.

Courtesy of AUDI OF AMERICA, LLC

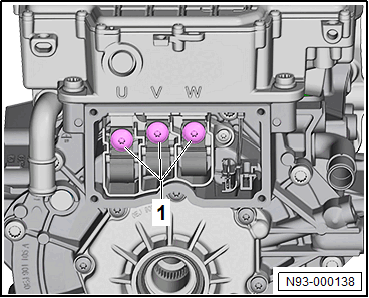

-- Remove the bolts -1- for the busbars.

Courtesy of AUDI OF AMERICA, LLC

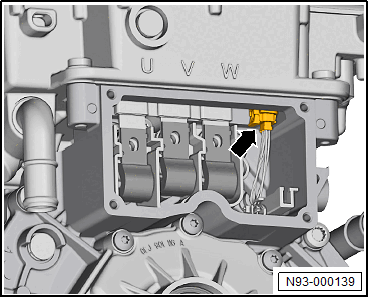

-- Disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

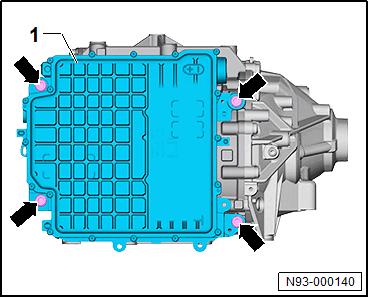

-- Remove the bolts -arrows- for the power electronics -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry off the power electronics -1- from the three-phase current drive.

Clean the sealing surfaces:

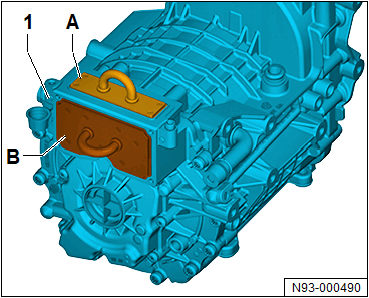

-- Close the openings at the three-phase current drive -1- using Cover :T10661/2  -A- and Cover :T10661/1  -B-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sealant with commercially available, chemical sealant remover and Scraper :VAS 294 027  .

-- Remove the sealant residue using the Brass Wire Brush :VAS 294 025  .

-- Clean the sealing surfaces and covers -A- and -B- using a commercially available vacuum cleaner.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the three-phase current drive covers -1-.

Power electronics, installing

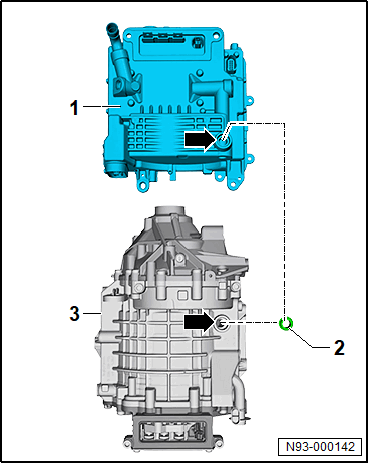

-- Thoroughly clean the openings for the connecting piece -arrows- to the power electronics -1- and the three-phase current drive -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Coat the connecting piece -2- with lithium grease and insert in the power electronics -1-.

Lithium lubricating grease. Refer to Electronic Parts Information (ETKA).

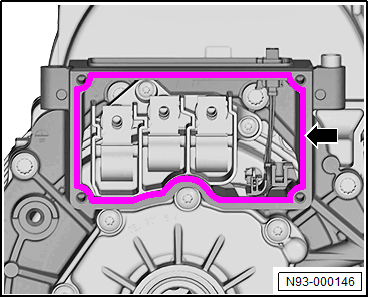

-- Clean the sealing surfaces -arrow- of the three-phase current drive and the power electronics using cleaning solution "D 291 091 A1".

Courtesy of AUDI OF AMERICA, LLC

Tip

The Cleaning Solution "D 291 091 A1" acts as an activator for the surface before application of the sealant and is decisive for a functional sealant bond.

Condition

• Allow the sealing surfaces to dry for 10 minutes

Applying sealant for power electronics:

For sealant, refer to the Electronic Parts Information (ETKA).

-- Cut free the tube nozzle on the front mark so that the diameter is 3 mm.

Courtesy of AUDI OF AMERICA, LLC

-- Apply the sealant -arrow- to the clean sealing surface on the three-phase current drive, as shown.

Courtesy of AUDI OF AMERICA, LLC

Condition

• Sealant bead thickness: approximately 2 through 3 mm
• Within 5 minutes of applying the sealant, install the power electronics and tighten the bolts

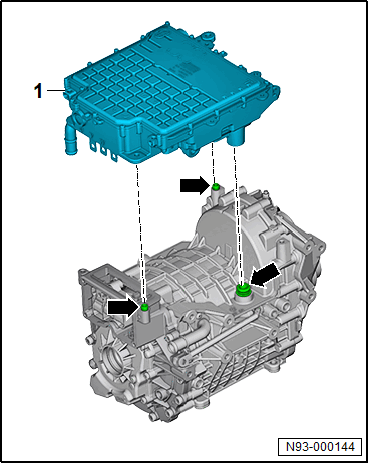

-- Position the power electronics -1- on the three-phase current drive. At the same time, pay attention to the alignment sleeves and the connecting piece -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolts -arrows- evenly hand-tight in a diagonal sequence.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows-.

-- Connect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1- for the busbars.

Courtesy of AUDI OF AMERICA, LLC

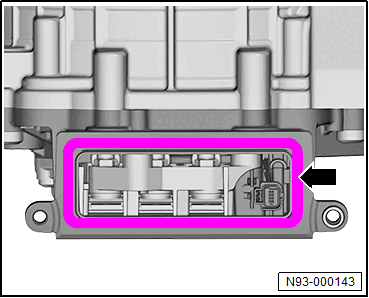

-- Clean the sealing surface -arrow- of the three-phase current drive using cleaning solution "D 291 091 A1".

Courtesy of AUDI OF AMERICA, LLC

Tip

The Cleaning Solution "D 291 091 A1" acts as an activator for the surface before application of the sealant and is decisive for a functional sealant bond.

Condition

• Allow the sealing surfaces to dry for 10 minutes

-- Apply the sealant -arrow- to the clean sealing surface on the three-phase current drive, as shown.

Courtesy of AUDI OF AMERICA, LLC

Condition

• Sealant bead thickness: approximately 2 through 3 mm
• Within 5 minutes of applying the sealant, install the cover and tighten the bolts

Condition

• The cover -1- must be installed without bleeder valve

-- Position the cover -1- and tighten the bolts -arrows- evenly in a diagonal sequence.

Courtesy of AUDI OF AMERICA, LLC

Tip

After assembly the leak test is performed through the bleeder valve opening.

-- Perform the leak test. Refer to Front Electric Drive Motor, Leak Test  .

Further installation is performed in reverse order of removal, while noting the following:

If the Electric Drive Power and Control Electronics 2 -JX4- was replaced:

-- Perform the necessary Function/Functions using the Vehicle diagnostic tester . Refer to Diagnostic Entries .
