Overview - Front Electric Drive Motor

Section 1

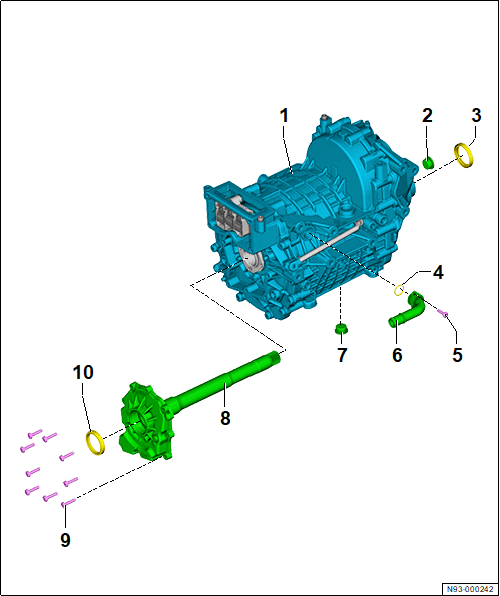

Fig 1: Exploded View Of Front Electric Drive Motor, Section 1 (EDDA, EDFA)

Courtesy of AUDI OF AMERICA, LLC

1. Three-Phase Current Drive 2 -VX97- with Transmission
   • With Electric Drive Motor 2 -V717-
2. Transmission Fluid Filler Hole Plug
   • 60 Nm
3. Seal
   • Replace after removing
   • Refer to RIGHT SEAL, REPLACING (0MJ) , or RIGHT SEAL, REPLACING (0MJD) .
4. O-Ring
   • Replace after removing
5. Bolt
   • Replace after removing
   • 8 Nm +45°
6. Coolant Connection
7. Transmission Fluid Drain Plug
   • 60 Nm
8. Gear Carrier with Shaft
9. Bolt
   • Quantity: 9
   • Replace after removing
   • Tightening specification and sequence. Refer to Fig 3.
10. Seal
    • Replace after removing
    • Refer to LEFT SEAL, REPLACING (0MJ) , or LEFT SEAL, REPLACING (0MJD) .

Section 2

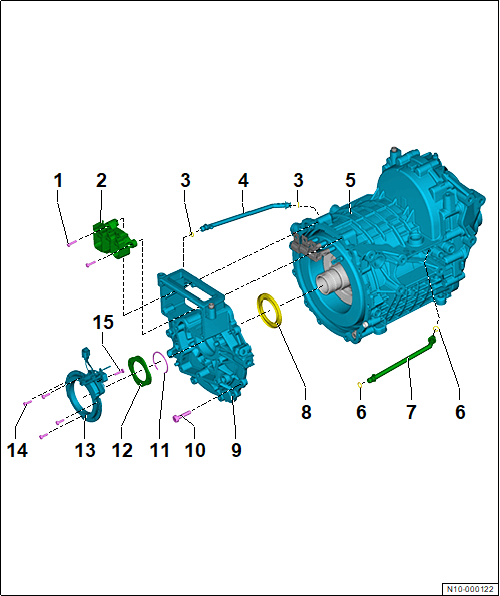

Fig 2: Exploded View Of Front Electric Drive Motor, Section 2 (EDDA, EDFA)

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Quantity: 2
   • Replace after removing
   • 4 Nm +90°
2. Contact Bridge
3. O-Ring
   • Replace after removing
4. Oil Pipe
5. Three-Phase Current Drive 2 -VX97- with Transmission
   • With Electric Drive Motor 2 -V717-
6. O-Ring
   • Replace after removing
7. Oil Pipe
8. Seal
   • Replace after removing
9. Gear Carrier
10. Bolt
    • Quantity: 12
    • Replace after removing
    • 16 Nm +90°
11. Circlip
    • Replace after removing
12. Sensor Wheel
13. Drive Motor 2 Rotor Position Sensor 1 -G1147-
    • With Drive Motor Temperature Sensor 2 -G1146-
14. Bolt
    • Tighten in a diagonal sequence
    • Quantity: 4
    • Replace after removing
    • 4 Nm +90°
15. Bolt
    • Replace after removing
    • 4 Nm +90°

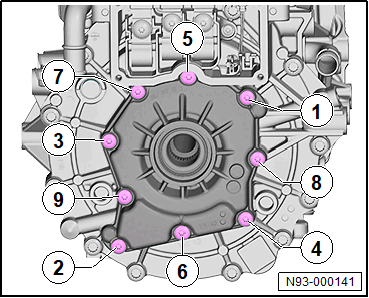

Fig 3: Front Electric Drive Motor Tightening Specification And Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC
