Oil Temperature Sensor G8, Removing And Installing: Removing

-- Remove the rear center underbody trim panels. Refer to REAR CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

-- Drain the transmission fluid. Refer to TRANSMISSION FLUID LEVEL, CHECKING (FRONT TRANSMISSION, 0MJD) , or TRANSMISSION FLUID LEVEL, CHECKING (REAR TRANSMISSION, 0MP) .

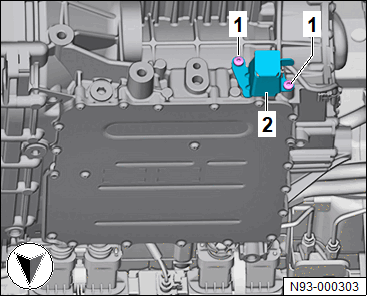

-- Remove the bolts -1- and the cover plate -2-.

Courtesy of AUDI OF AMERICA, LLC

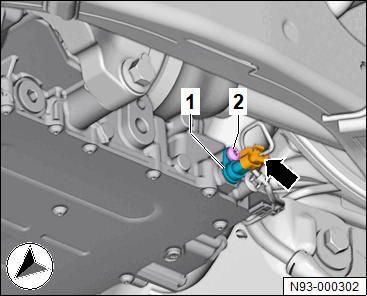

-- Disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Remove the Oil Temperature Sensor -G8- -1-.
