Overview - Rear Electric Drive Motor

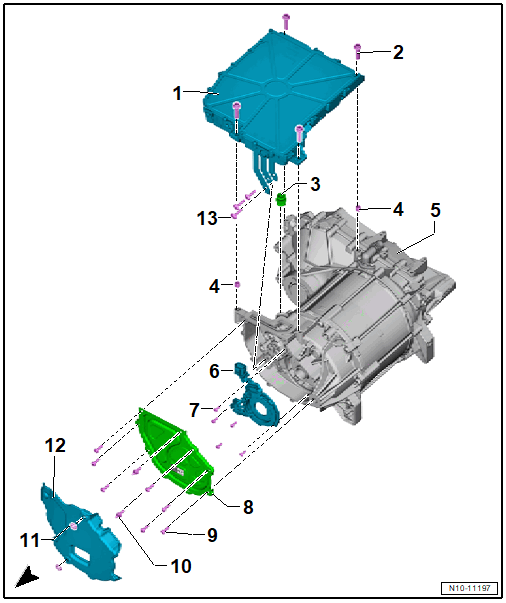

Fig 1: Exploded View Of Electric Drive Motor, Rear Motor

Courtesy of AUDI OF AMERICA, LLC

Electric Drive Power and Control Electronics -JX1-
- With Electric Drive Control Module -J841-
- With Intermediate Circuit Capacitor 1 -C25-
- With Drive Motor Inverter -A37-
- Refer to REAR ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- Replace after removing
- 16 Nm +135°
Connecting Piece
- Replace after removing
Alignment Sleeve
- Quantity: 2
Three-Phase Current Drive -VX54- with Transmission
- With Electric Drive Motor -V141-
- Refer to REAR MOTOR, REMOVING, BASIC , or REAR MOTOR, REMOVING, PERFORMANCE .
Drive Motor Rotor Position Sensor 1 -G713-
- With Drive Motor Temperature Sensor -G712-
- Refer to REAR DRIVE MOTOR ROTOR POSITION SENSOR, REMOVING AND INSTALLING .
Bolt
- Quantity: 6
- Replace after removing
- 4 Nm +90°
Cover
- Replace after removing
Bolt
- Quantity: 7
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
Double Bolt
- Quantity: 2
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
Lock Washer
- Quantity: 2
Noise Insulation
Bolt
- Quantity: 3
- Replace after removing
- 8 Nm +90°

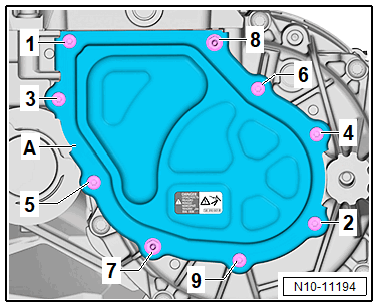

Fig 2: Timing Cover - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Step	Bolts	Tightening Specification/Additional Turn
1	-1- through -9-	Hand-tight all the way
2	-1- through -9-	8 Nm
3	-1- through -9-	45°
