Engine Sound Generator Control Module 3 J1177, Removing And Installing: Removing

-- Turn off the ignition. Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

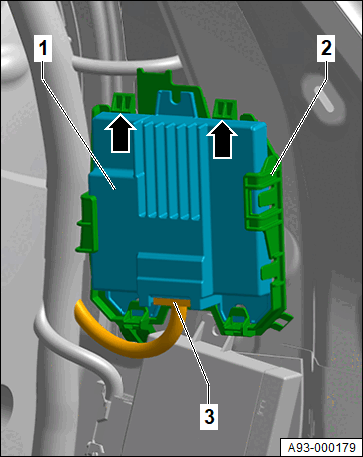

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows-.

-- Remove the Engine Sound Generator Control Module 3 -J1177- -1- from the bracket -2- upward.
