Overview - Charging Socket

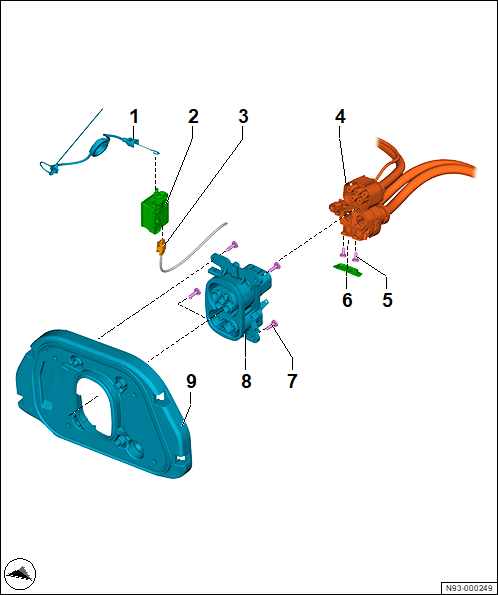

Fig 1: Exploded View Of Charging Socket, With Separate Charging Cable
GWWN93-000249Courtesy of AUDI OF AMERICA, LLC
  1. Release Cable
  2. High-Voltage Charging Connector Lock 1 Adjuster -F498-
  3. Connector
  4. Charging Cable
  5. Bolt
    • Quantity: 2
    • 7.5 Nm
  6. Cover
  7. Bolt
    • Quantity: 4
    • 8 Nm
  8. High-Voltage Battery Charging Socket 1 -UX4-
  9. Charging Socket, Bracket
