Overview - Electric Coolant Pump

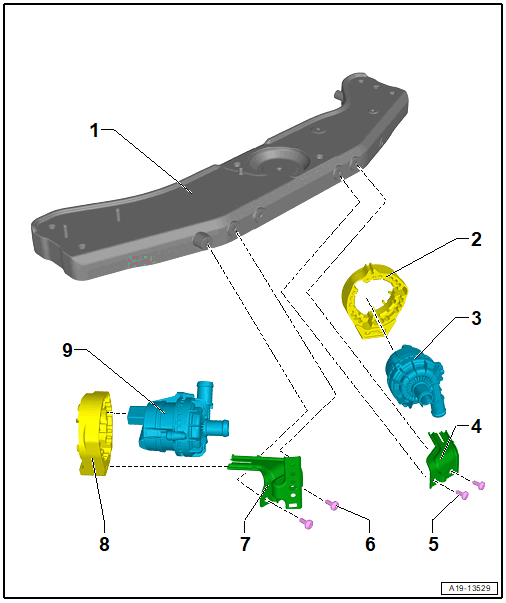

Fig 1: Exploded View Of Electric Coolant Pump

Courtesy of AUDI OF AMERICA, LLC

Crossmember
Rubber Bushing
High-Voltage Battery Coolant Pump -V590-
- Refer to HIGH-VOLTAGE BATTERY COOLANT PUMP V590, REMOVING AND INSTALLING, RWD , or HIGH-VOLTAGE BATTERY COOLANT PUMP V590, REMOVING AND INSTALLING, AWD .
Bracket
Bolt
- Quantity: 2
- 8 Nm
Bolt
- Quantity: 2
- 8 Nm
Bracket
Rubber Bushing
Low Temperature Circuit Coolant Pump -V468-
- Refer to Low Temperature Circuit Coolant Pump V468, Removing and Installing .
