Overview - Air Routing And Air Distribution In Vehicle Interior

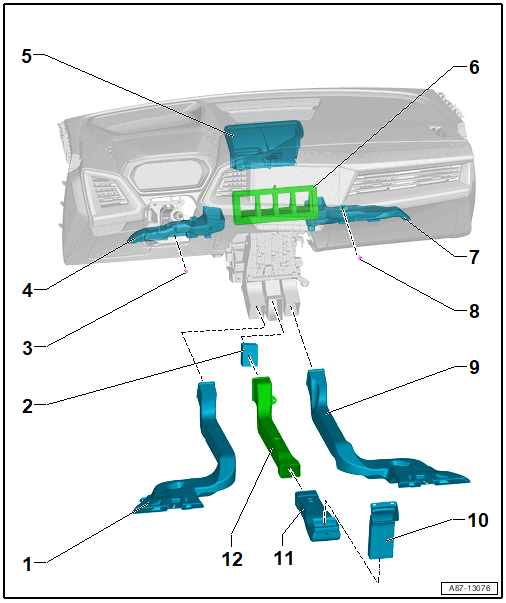

Fig 1: Exploded View Of Air Routing And Air Distribution In Vehicle Interior

Courtesy of AUDI OF AMERICA, LLC

1. Left Rear Footwell Vent
   • Refer to Rear Footwell Vent, Removing and Installing  .
2. Plugs
   • For versions without rear air duct
3. Bolt
   • 1.5 Nm
4. Driver Side Footwell Vent
   • Refer to Driver Side Footwell Vent, Removing and Installing  .
5. Air Duct for Air Vent Defrost
   • Refer to Air Duct for Defrost Air Vent, Removing and Installing  .
6. Instrument Panel Center Vent Air Duct
   • Refer to Center Instrument Panel Vent Air Duct, Removing and Installing  .
7. Front Passenger Side Footwell Vent
   • Refer to Front Passenger Side Footwell Vent, Removing and Installing  .
8. Bolt
   • 1.5 Nm
9. Right Rear Footwell Vent
   • Refer to Rear Footwell Vent, Removing and Installing  .
10. Intermediate Piece Air Guide Duct, Rear Vent
    • Refer to INTERMEDIATE PIECE AIR GUIDE DUCT, REAR VENT, REMOVING AND INSTALLING
11. Rear Center Console Vent Air Duct
    • Rear
    • Refer to Air Duct for Rear Center Console Vent, Removing and Installing  .
12. Rear Center Console Vent Air Duct
    • Front
    • Refer to Air Duct for Rear Center Console Vent, Removing and Installing  .
