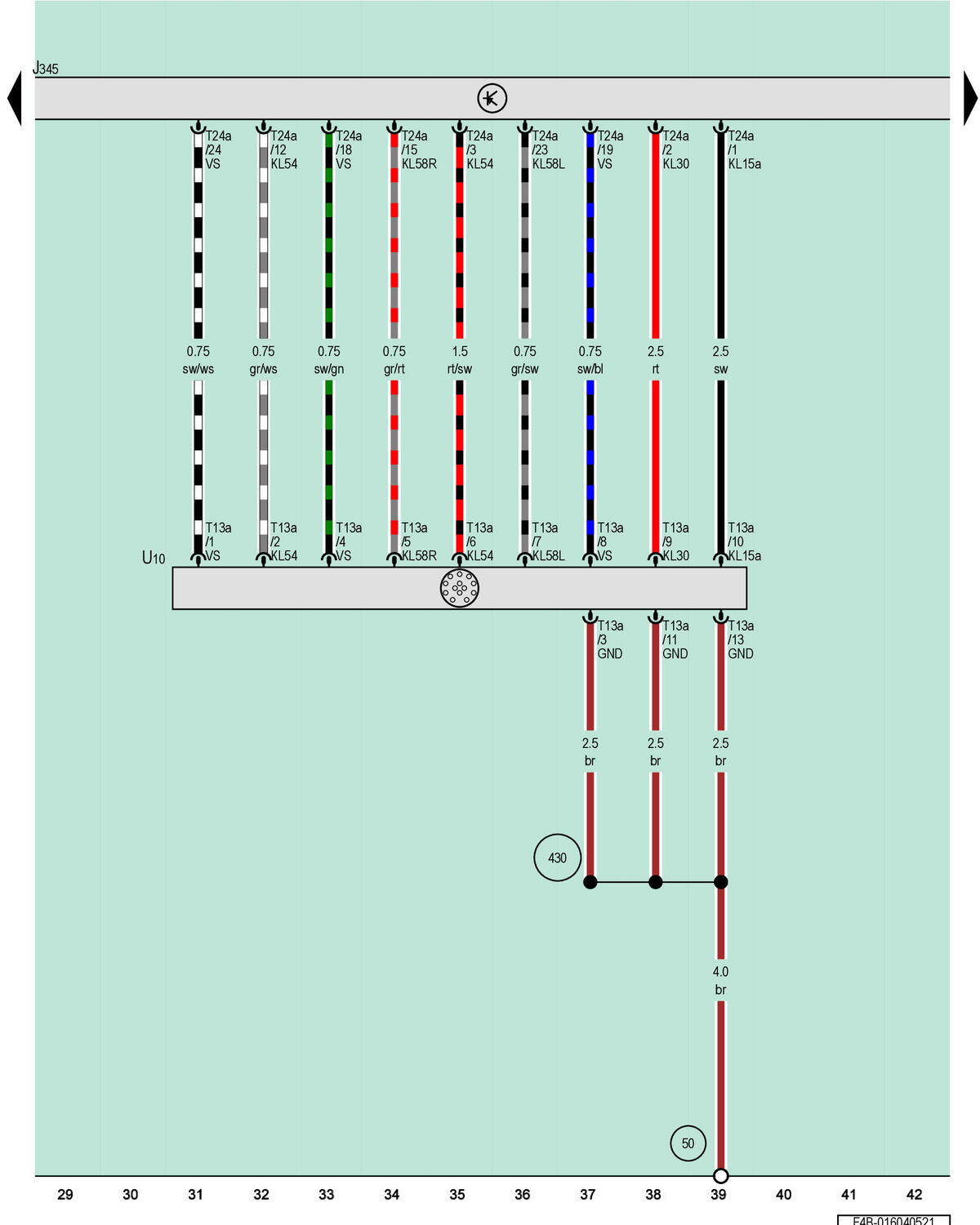

Towing Recognition Control Module, Trailer Socket

GWWF4B-016040521Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

T13a

13-Pin Connector, Black

T24a

24-Pin Connector, Black

U10

Trailer Socket

50

Ground Connection in Luggage Compartment, Left

430

Ground Connection in Trailer Hitch Wiring Harness
