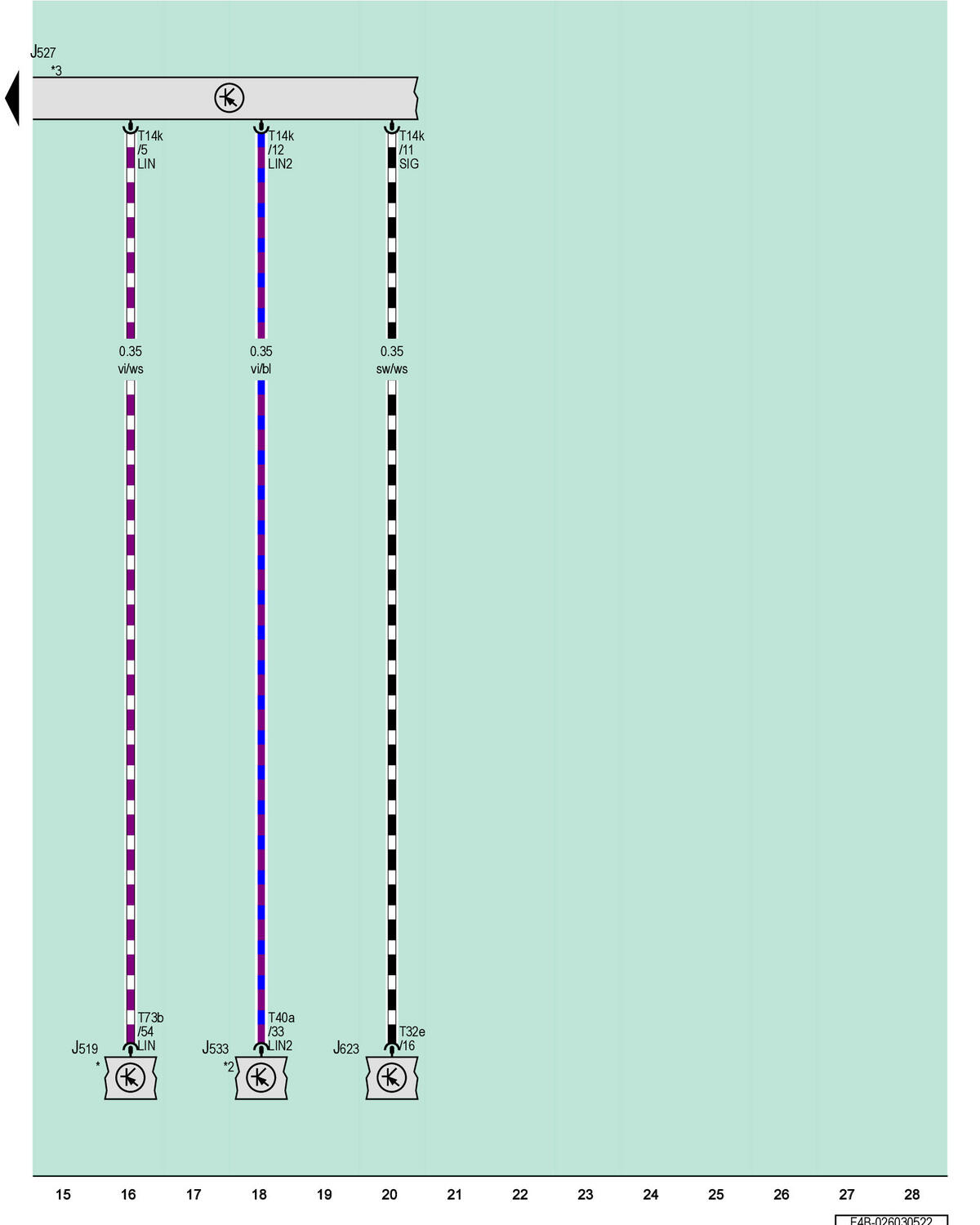

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

T14k

14-Pin Connector, Black

T32e

32-Pin Connector, Gray

T40a

40-Pin Connector, Black

T73b

73-Pin Connector, Black

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Data Bus Networking

*3

Refer to Applicable Wiring Diagram for Multifunction Steering Wheel
