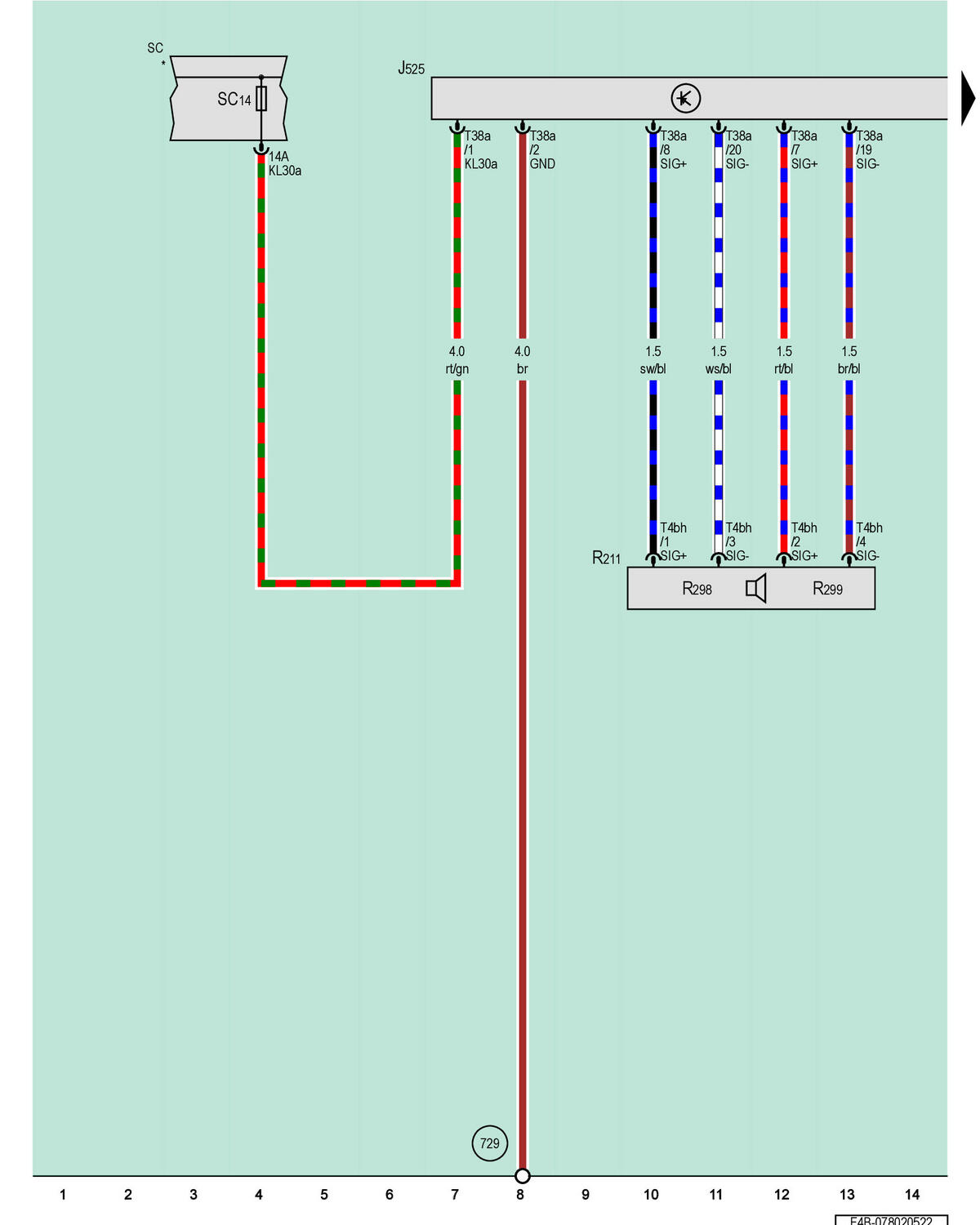

Digital Sound System Control Module, Subwoofer, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R211

Subwoofer

R298

Dual Subwoofer Speaker 1

R299

Dual Subwoofer Speaker 2

SC

Fuse Panel C

SC14

Fuse 14 (On Fuse Panel C)

T4bh

4-Pin Connector, Black

T38a

38-Pin Connector, Black

729

Ground Connection on Left Rear Wheel Housing

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
