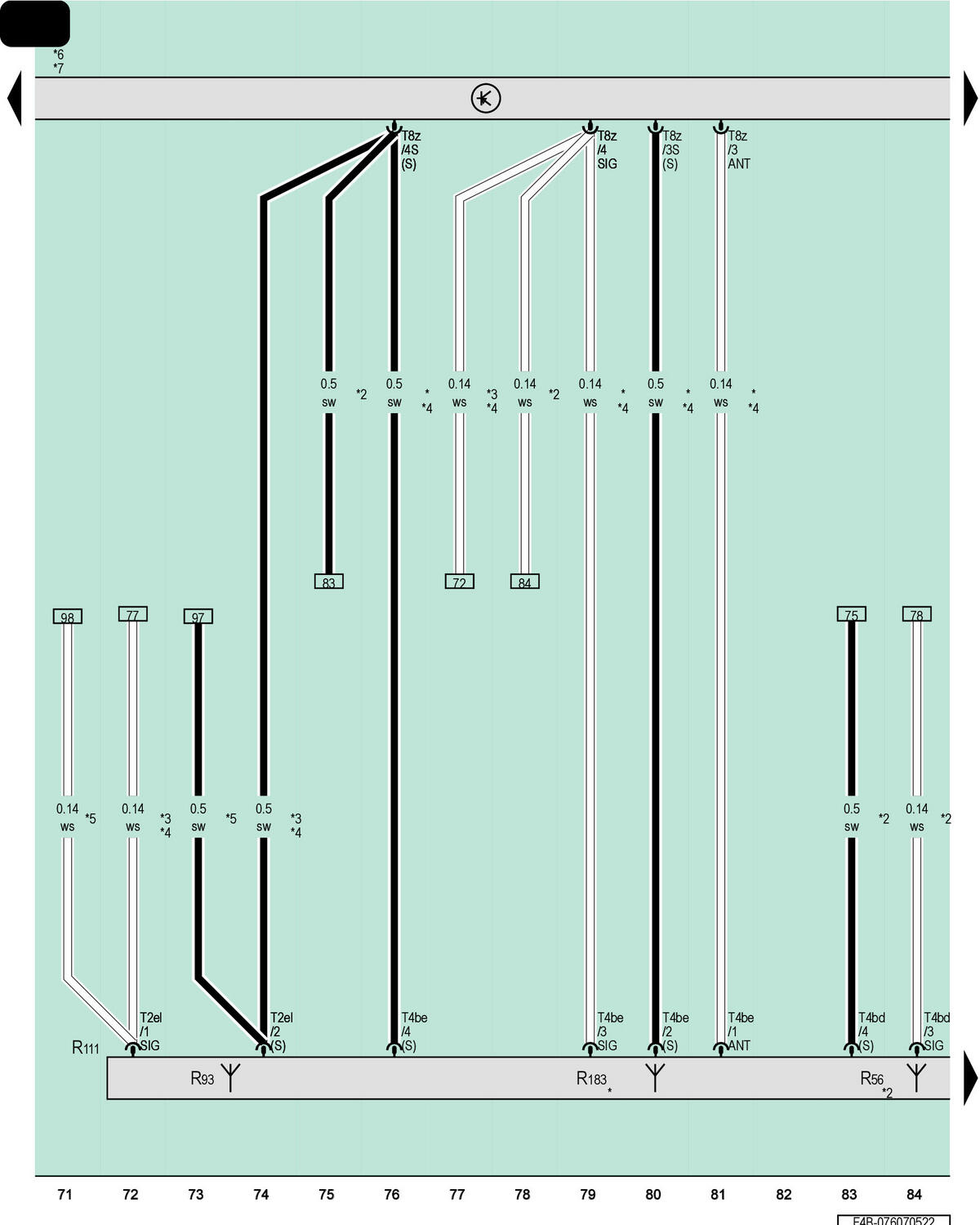

Information Electronics Control Module 1, Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R56

TV Antenna 2

R93

Radio Antenna 2

R111

Antenna Amplifier 2

R183

Digital Radio Antenna

T2el

2-Pin Connector, Naturally Cloudy

T4bd

4-Pin Connector, Blue

T4be

4-Pin Connector, Naturally Cloudy

T8z

8-Pin Connector, Light Blue

*

For Vehicles with Digital Radio

*2

For Vehicles with Japan Equipment

*3

For Vehicles Without Digital Radio

*4

For Vehicles Without US Equipment

*5

For Vehicles with US Equipment

*6

Refer to Applicable Sound System Wiring Diagram

*7

Refer to Applicable Windshield Projection Wiring Diagram
