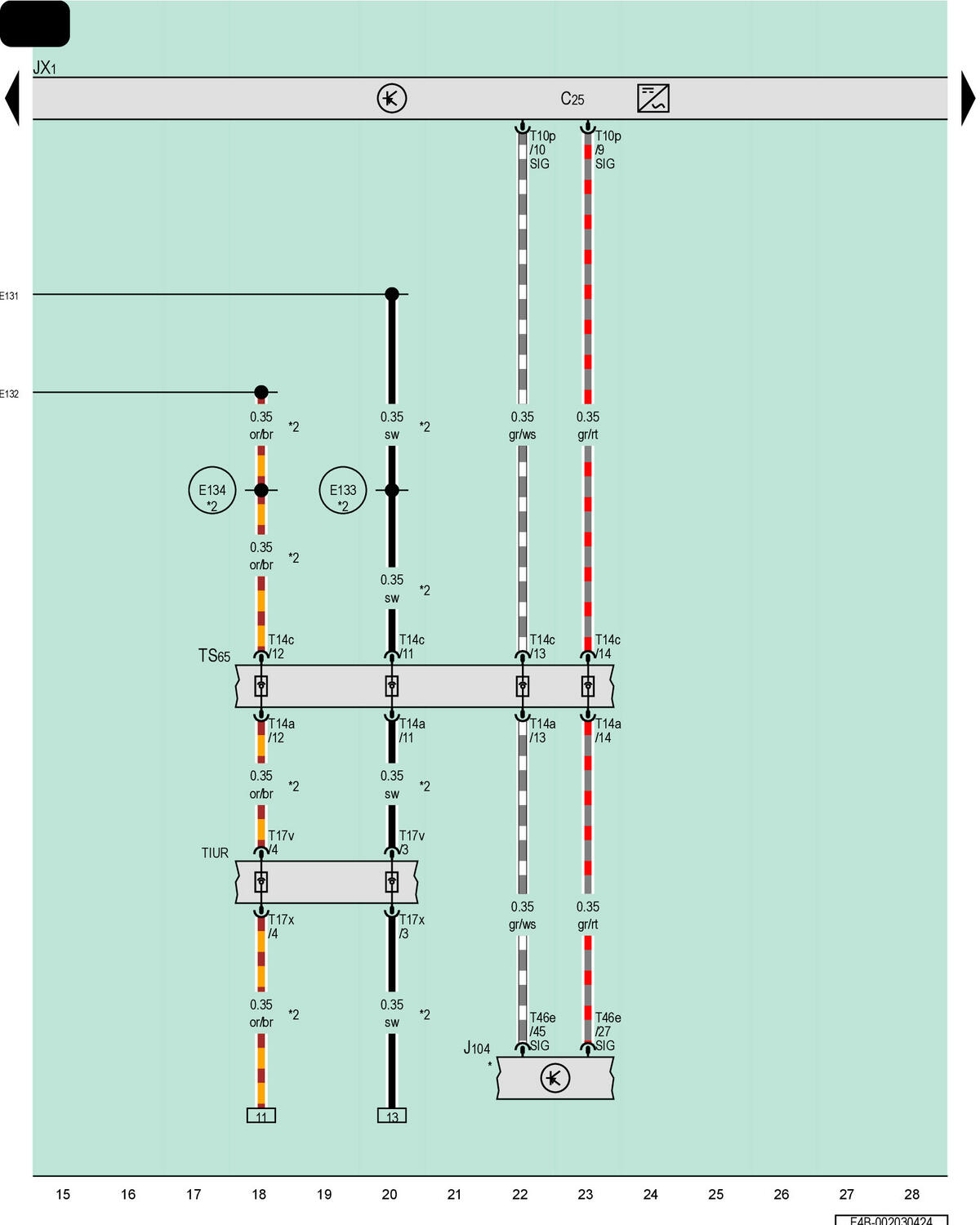

Electric Drive Power And Control Electronics, Abs Control Module
C25
Intermediate Circuit Capacitor 1
JX1
Electric Drive Power and Control Electronics
J104
ABS Control Module
T10p
10-Pin Connector, Black
T14a
14-Pin Connector, Black
T14c
14-Pin Connector, Black
T17v
17-Pin Connector, Brown
T17x
17-Pin Connector, Brown
T46e
46-Pin Connector, Black
TIUR
Coupling Point in Interior, Bottom Right
TS65
Front Suspension Coupling Point
E131
CAN Bus Drive High Connection 5 (in Engine Wiring Harness)
E132
CAN Bus Drive Low Connection 5 (in Engine Wiring Harness)
E133
CAN Bus Drive High Connection 6 (in Engine Wiring Harness)
E134
CAN Bus Drive Low Connection 6 (in Engine Wiring Harness)
*
Refer to Applicable Brake System Wiring Diagram
*2
For AWD Vehicles
