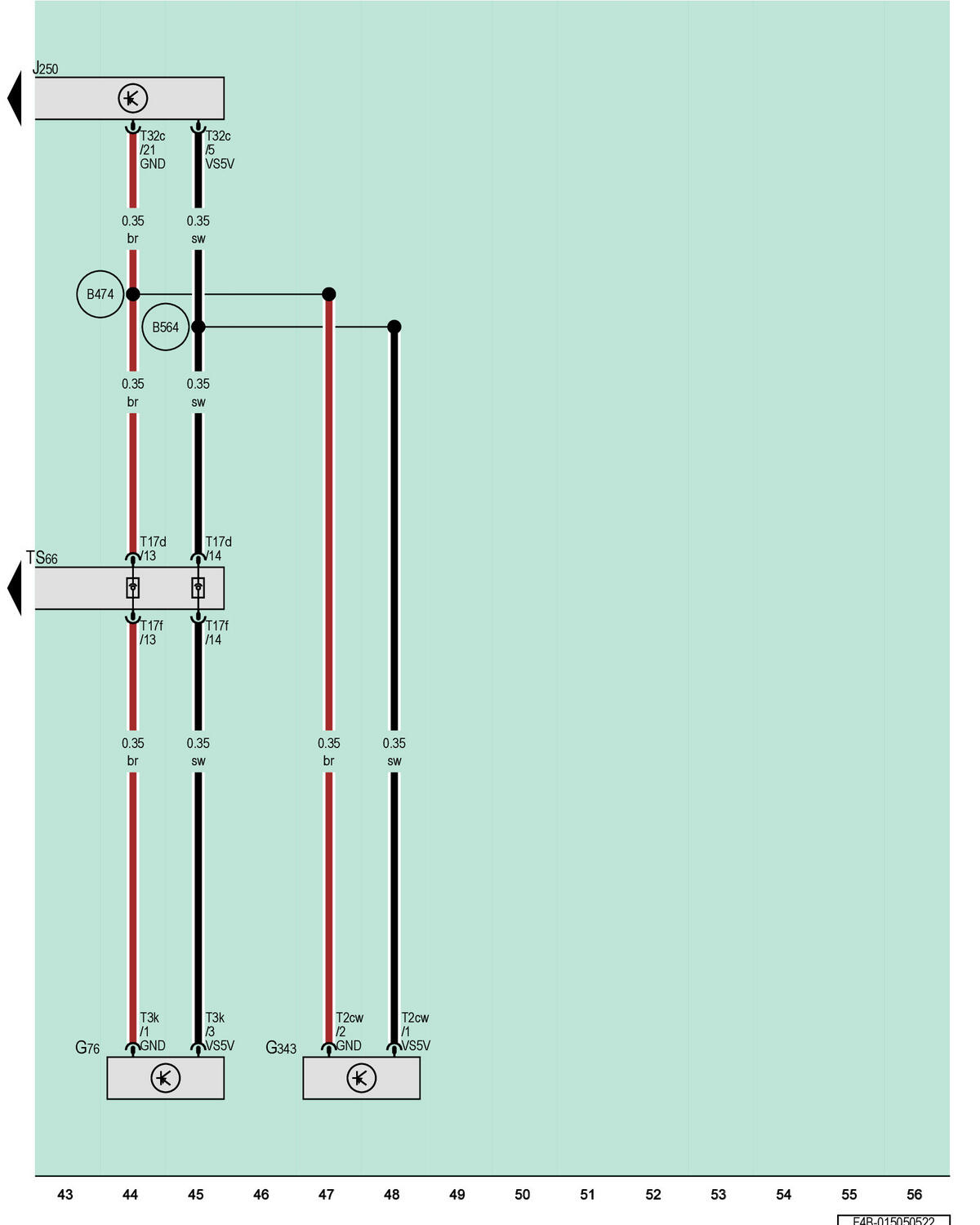

Left Rear Level Control System Sensor, Rear Body Acceleration Sensor, Electronic Damping Control Module

Courtesy of AUDI OF AMERICA, LLC

G76

Left Rear Level Control System Sensor

G343

Rear Body Acceleration Sensor

J250

Electronic Damping Control Module

T2cw

2-Pin Connector, Black

T3k

3-Pin Connector, Black

T17d

17-Pin Connector, Brown

T17f

17-Pin Connector, Brown

T32c

32-Pin Connector, Black

TS66

Rear Suspension Coupling Point

B474

Connection 10 (in Main Wiring Harness)

B564

Connection 31 (in Main Wiring Harness)
