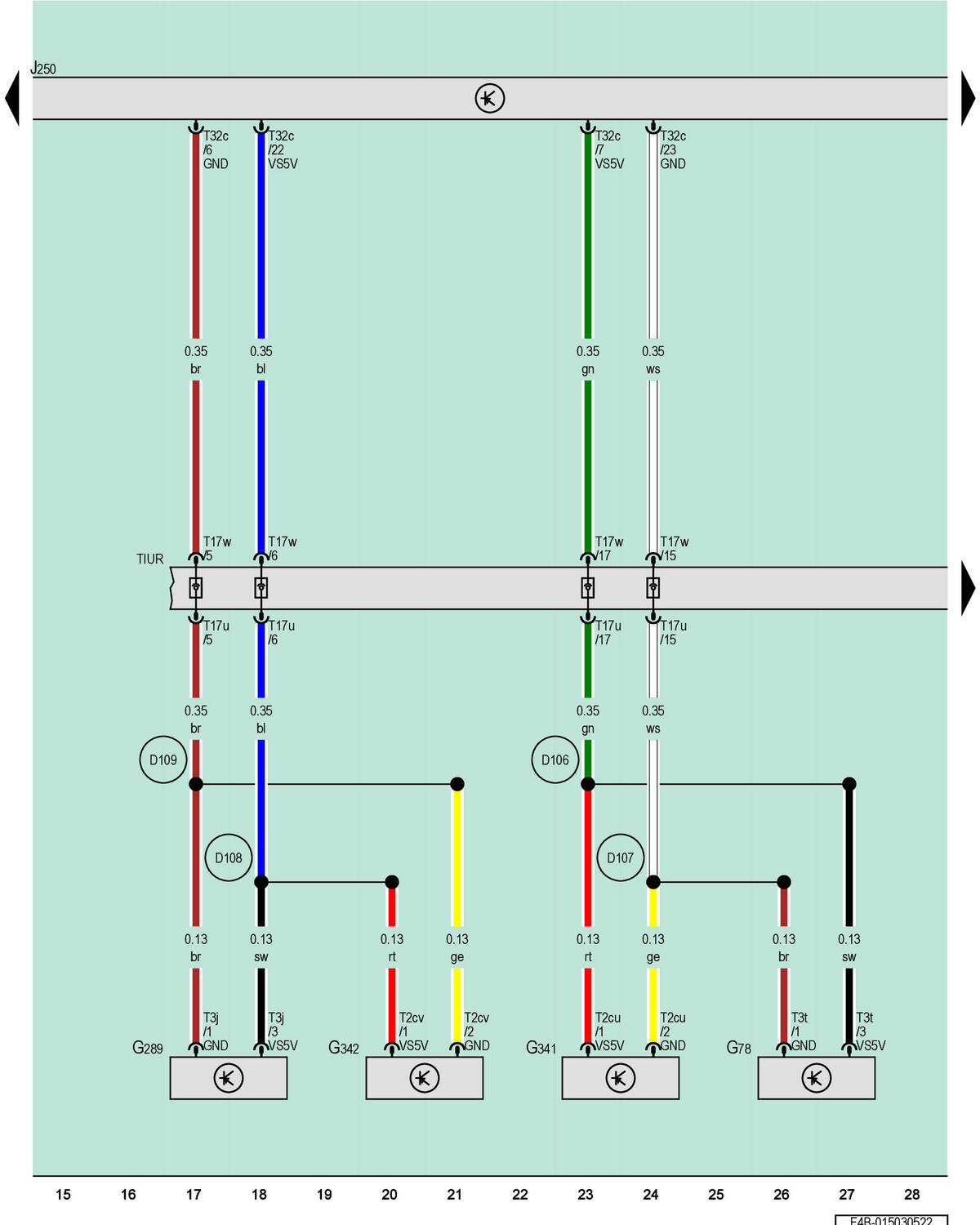

Left Front Level Control System Sensor, Right Front Level Control System Sensor, Left Front Body Acceleration Sensor, Right Front Body Acceleration Sensor, Electronic Damping Control Module

Courtesy of AUDI OF AMERICA, LLC

G78

Left Front Level Control System Sensor

G289

Right Front Level Control System Sensor

G341

Left Front Body Acceleration Sensor

G342

Right Front Body Acceleration Sensor

J250

Electronic Damping Control Module

T2cu

2-Pin Connector, Black

T2cv

2-Pin Connector, Black

T3j

3-Pin Connector, Black

T3t

3-Pin Connector, Black

T17u

17-Pin Connector, Black

T17w

17-Pin Connector, Black

T32c

32-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

D106

Connection 4 (in Engine/Motor Compartment Wiring Harness)

D107

Connection 5 (in Engine/Motor Compartment Wiring Harness)

D108

Connection 6 (in Engine/Motor Compartment Wiring Harness)

D109

Connection 7 (in Engine/Motor Compartment Wiring Harness)
