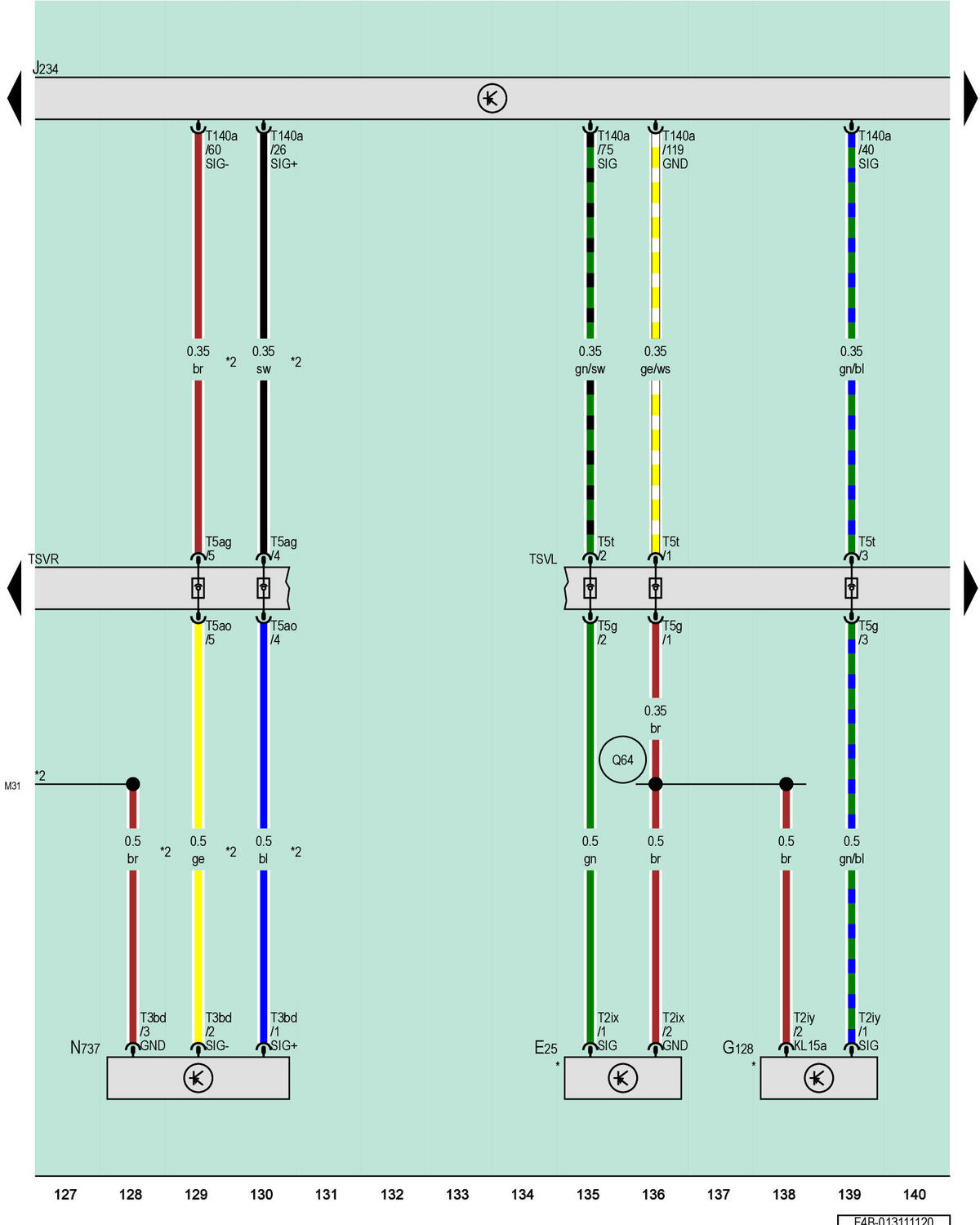

Front Passenger Seat Belt Switch, Passenger Seat Occupant Detection Sensor, Airbag Control Module, Driver Side Front Center Airbag Igniter For Occupant Contact Protection
E25
Front Passenger Seat Belt Switch
G128
Passenger Seat Occupant Detection Sensor
J234
Airbag Control Module
N737
Driver Side Front Center Airbag Igniter for Occupant Contact Protection
T2ix
2-Pin Connector, Black
T2iy
2-Pin Connector, White
T3bd
3-Pin Connector, Yellow
T5ag
5-Pin Connector, Yellow
T5ao
5-Pin Connector, Yellow
T5g
5-Pin Connector, Black
T5t
5-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
M31
Connection 75 (in Convertible Top Wiring Harness)
Q64
Connection (in Seat Belt Tensioner Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Advanced Safety Systems
