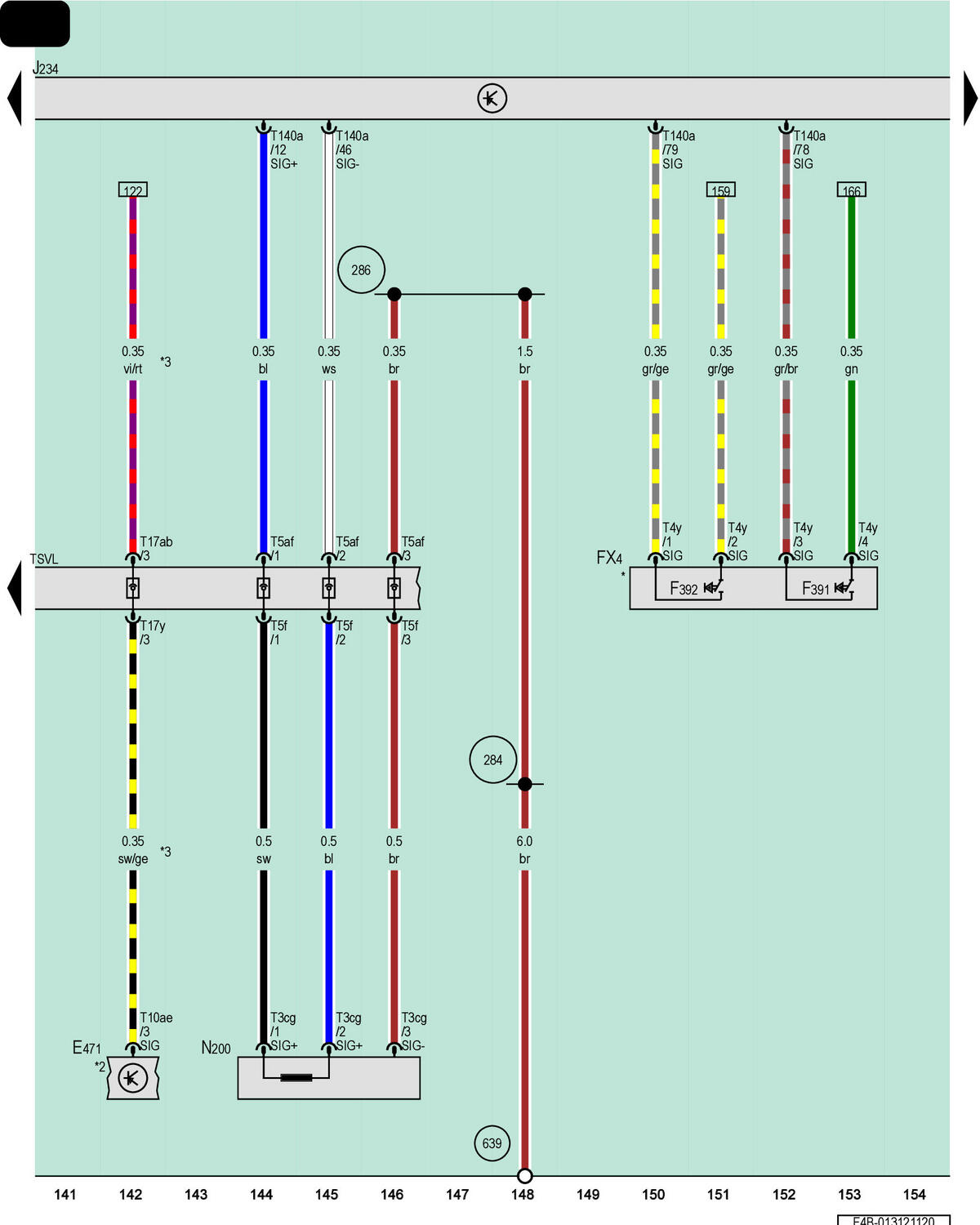

Front Passenger Seat Adjustment Control Head, Dual Seat Belt Latch, Airbag Control Module, Front Passenger Thorax Airbag Igniter
E471
Front Passenger Seat Adjustment Control Head
FX4
Dual Seat Belt Latch
F391
Center Second Row Seat Belt Switch
F392
Passenger Side Second Row Seat Belt Switch
J234
Airbag Control Module
N200
Front Passenger Thorax Airbag Igniter
T3cg
3-Pin Connector, Yellow
T4y
4-Pin Connector, Black
T5af
5-Pin Connector, Yellow
T5f
5-Pin Connector, Yellow
T10ae
10-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17y
17-Pin Connector, Red
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
284
Ground Connection 6 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Pre-Wired Component
*2
Refer to Applicable Wiring Diagram for the Front Passenger Seat
*3
For Vehicles with Power Passenger Seat Adjuster
