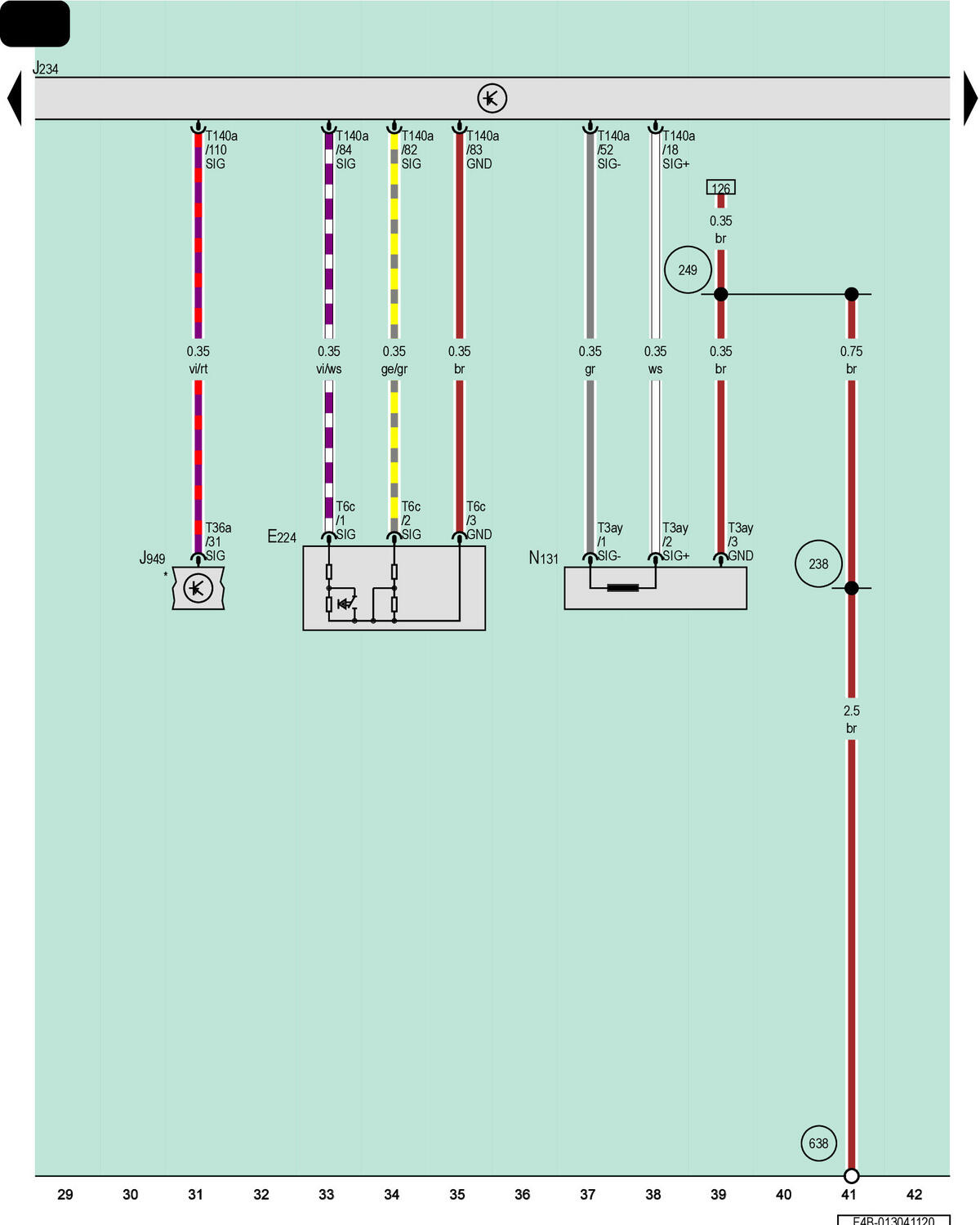

Front Passenger Airbag Deactivation Key Switch, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Front Passenger Airbag Igniter 1
E224
Front Passenger Airbag Deactivation Key Switch
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
N131
Front Passenger Airbag Igniter 1
T3ay
3-Pin Connector, Yellow
T6c
6-Pin Connector, Yellow
T36a
36-Pin Connector, Black
T140a
140-Pin Connector, Yellow
238
Ground Connection 1 (in Interior Wiring Harness)
249
Ground Connection 2 (in Interior Wiring Harness)
638
Ground Connection on Right A-Pillar
*
Refer to Applicable Communication Wiring Diagram
