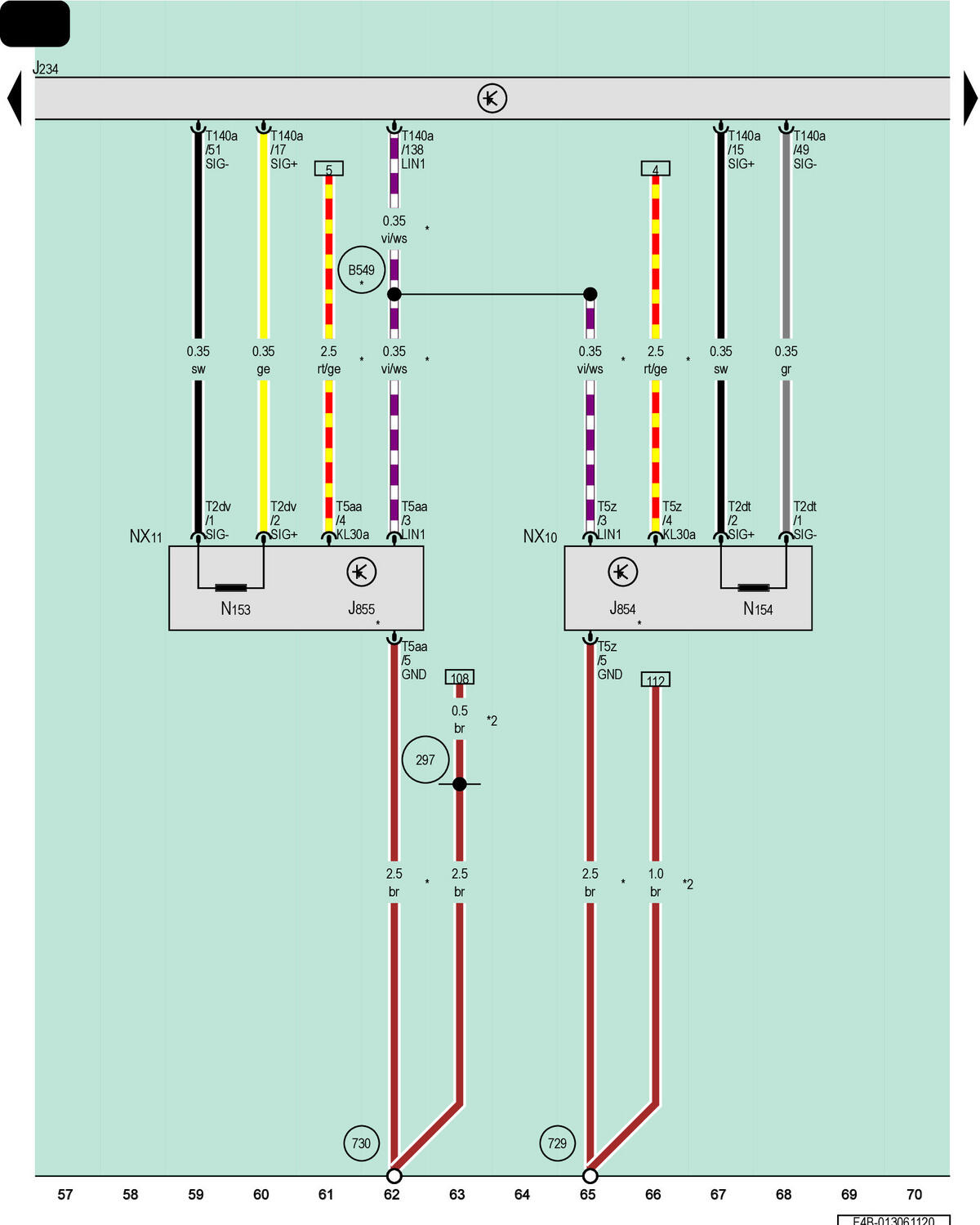

Airbag Control Module, Left Front Seat Belt, Right Front Seat Belt
J234
Airbag Control Module
J854
Left Front Seat Belt Tensioner Control Module
J855
Right Front Seat Belt Tensioner Control Module
NX10
Left Front Seat Belt
NX11
Right Front Seat Belt
N153
Driver Seat Belt Tensioner Igniter 1
N154
Front Passenger Seat Belt Tensioner Igniter 1
T2dt
2-Pin Connector, Yellow
T2dv
2-Pin Connector, Yellow
T5aa
5-Pin Connector, Naturally Cloudy
T5z
5-Pin Connector, Naturally Cloudy
T140a
140-Pin Connector, Yellow
297
Ground Connection 12 (in Interior Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
730
Ground Connection 1 on Right Rear Wheel Housing
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
For Vehicles with Advanced Safety Systems
*2
For Vehicles with Rear Thorax Airbags
