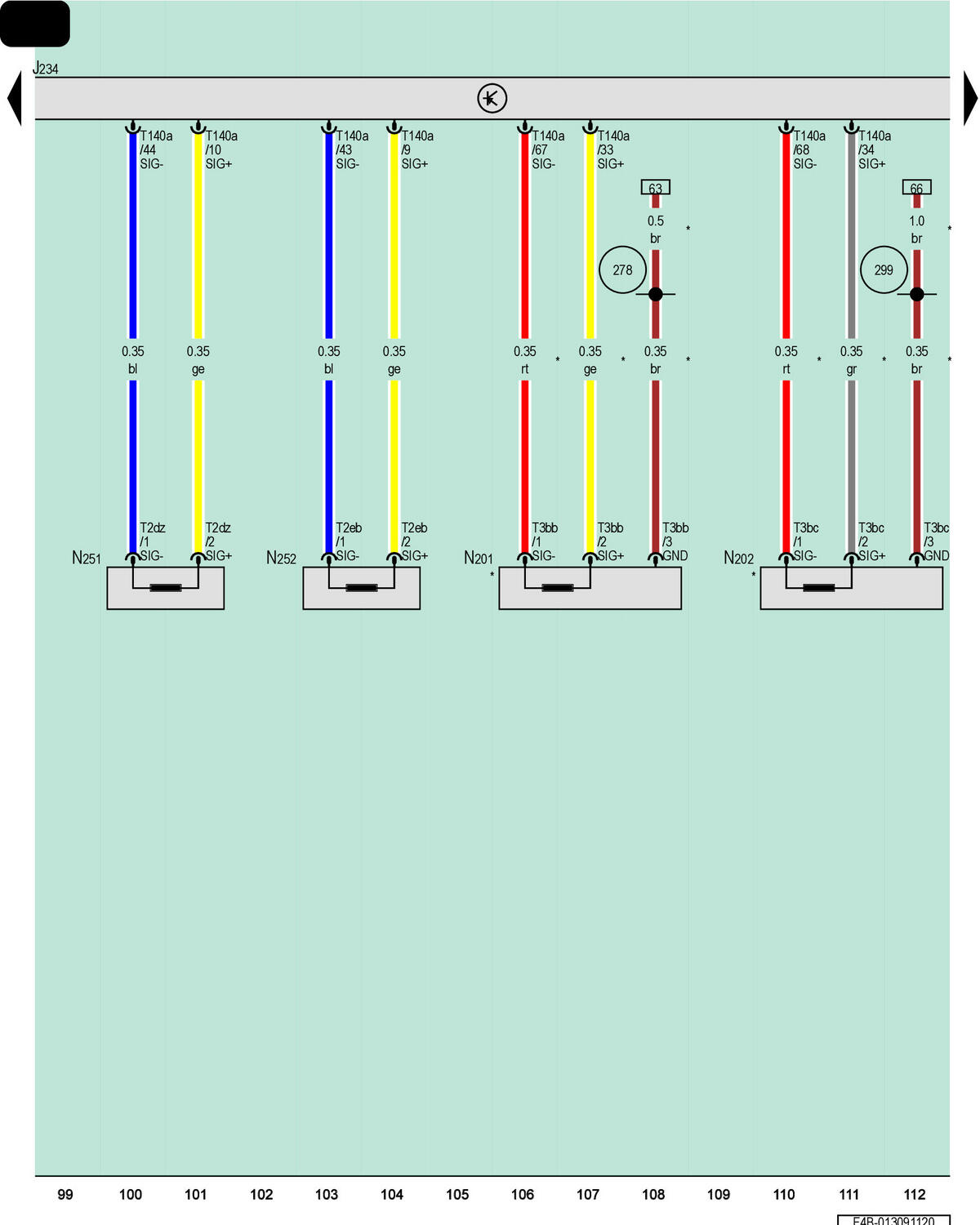

Airbag Control Module, Driver Side Rear Thorax Airbag Igniter, Passenger Side Rear Thorax Airbag Igniter, Driver Head Curtain Airbag Igniter, Front Passenger Head Curtain Airbag Igniter
J234
Airbag Control Module
N201
Driver Side Rear Thorax Airbag Igniter
N202
Passenger Side Rear Thorax Airbag Igniter
N251
Driver Head Curtain Airbag Igniter
N252
Front Passenger Head Curtain Airbag Igniter
T2dz
2-Pin Connector, Yellow
T2eb
2-Pin Connector, Yellow
T3bb
3-Pin Connector, Yellow
T3bc
3-Pin Connector, Yellow
T140a
140-Pin Connector, Yellow
278
Ground Connection 4 (in Interior Wiring Harness)
299
Ground Connection 14 (in Interior Wiring Harness)
*
For Vehicles with Rear Thorax Airbags
