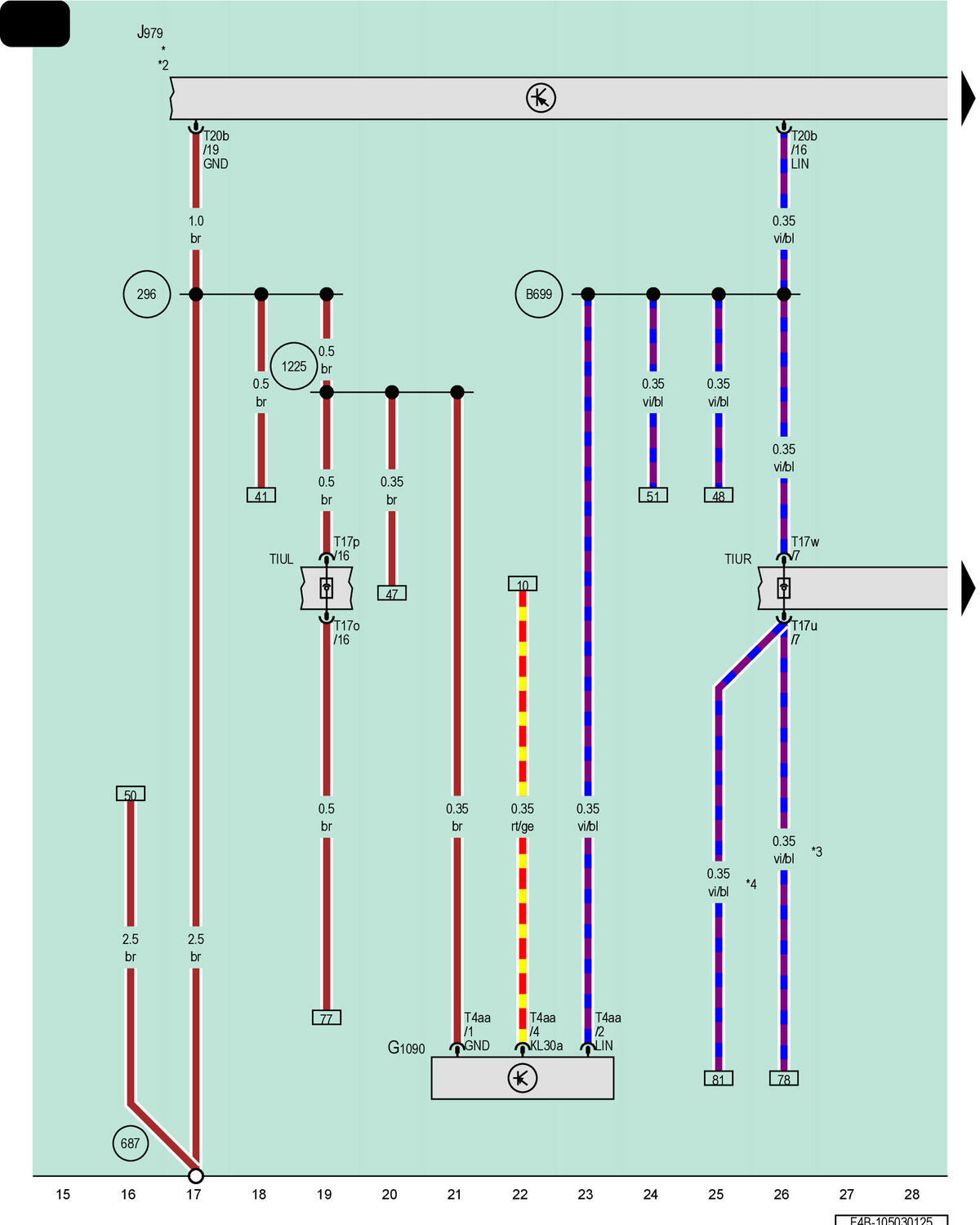

Vehicle Interior Temperature Sensor, Heating And Air Conditioning Control Module
G1090
Vehicle Interior Temperature Sensor
J979
Heating and Air Conditioning Control Module
T4aa
4-Pin Connector, Black
T17o
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
T17u
17-Pin Connector, Black
T17w
17-Pin Connector, Black
T20b
20-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
TIUR
Coupling Point in Interior, Bottom Right
296
Ground Connection 11 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
1225
Ground Connection 18 (in Interior Wiring Harness)
B699
LIN Bus Connection 4 (in Main Wiring Harness)
*
Refer to Applicable Thermo Management Wiring Diagram
*2
Refer to the Applicable Heated Seats Wiring Diagram
*3
For Vehicles Without Heat Pump
*4
For Vehicles with Heat Pump
