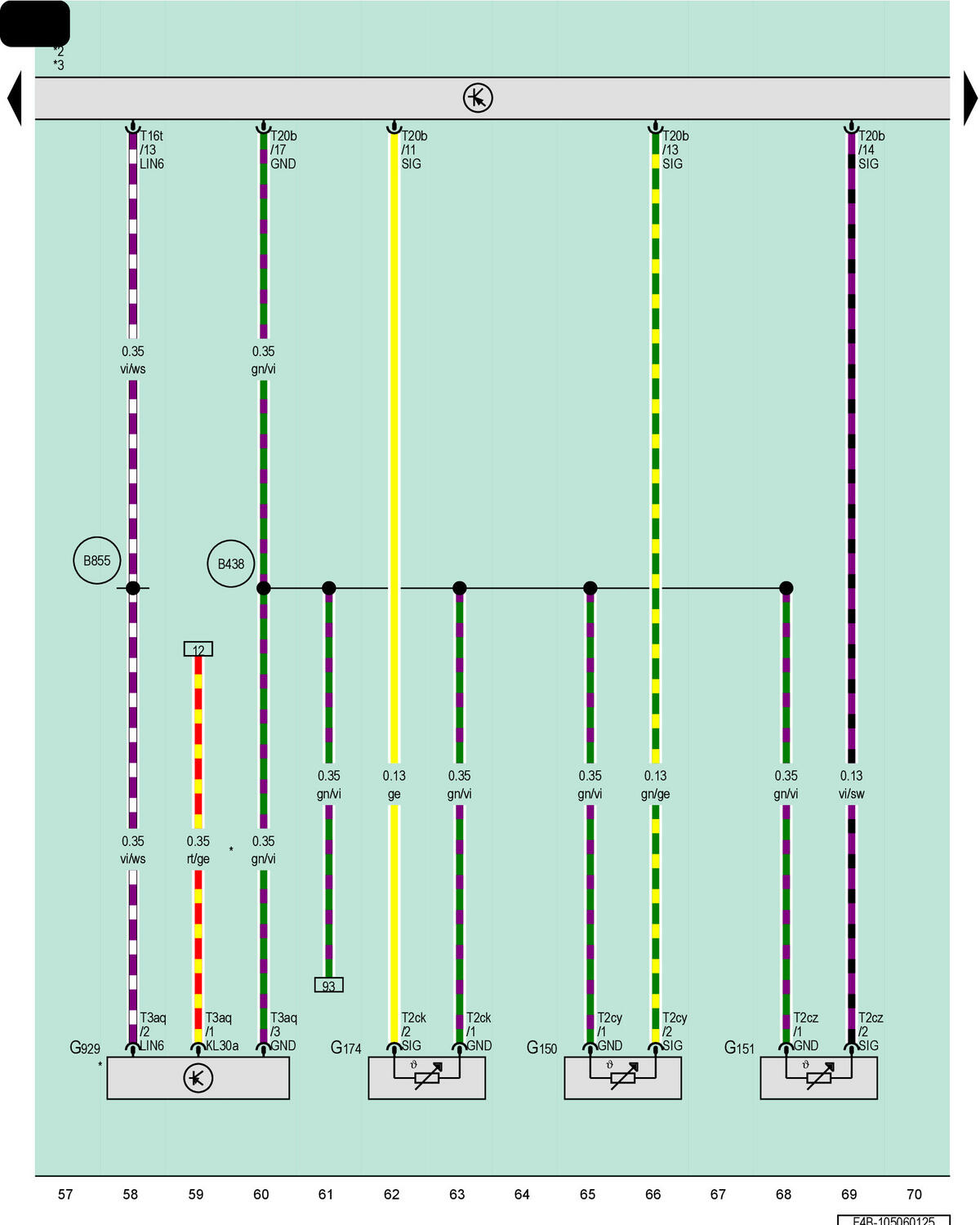

Left Vent Temperature Sensor, Right Vent Temperature Sensor, Rear Vent Temperature Sensor, Vehicle Interior Carbon Dioxide Concentration Sensor, Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

G150

Left Vent Temperature Sensor

G151

Right Vent Temperature Sensor

G174

Rear Vent Temperature Sensor

G929

Vehicle Interior Carbon Dioxide Concentration Sensor

J979

Heating and Air Conditioning Control Module

T2ck

2-Pin Connector, Black

T2cy

2-Pin Connector, Black

T2cz

2-Pin Connector, Black

T3aq

3-Pin Connector, Blue

T16t

16-Pin Connector, Blue

T20b

20-Pin Connector, Black

B438

Ground Connection 2 (in Main Wiring Harness)

B855

LIN Bus Connection 15 (in Main Wiring Harness)

*

For Vehicles with Heat Pump

*2

Refer to Applicable Thermo Management Wiring Diagram

*3

Refer to the Applicable Heated Seats Wiring Diagram
