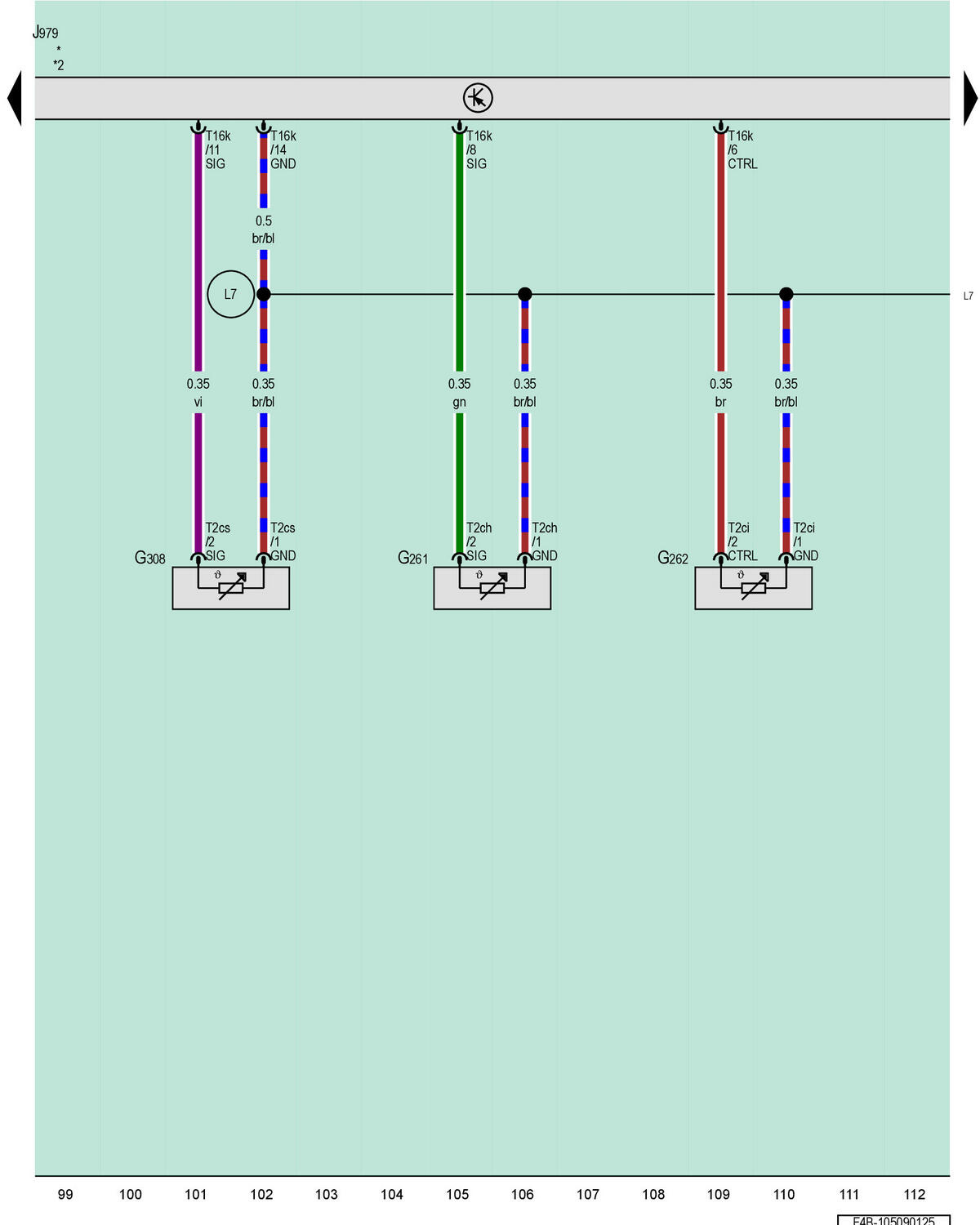

Left FOOTWELL Vent Temperature Sensor, Right FOOTWELL Vent Temperature Sensor, Evaporator Temperature Sensor, Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

G261

Left Footwell Vent Temperature Sensor

G262

Right Footwell Vent Temperature Sensor

G308

Evaporator Temperature Sensor

J979

Heating and Air Conditioning Control Module

T2ch

2-Pin Connector, Black

T2ci

2-Pin Connector, Black

T2cs

2-Pin Connector, Black

T16k

16-Pin Connector, Black

L7

Connection 3 (in A/C Unit Wiring Harness)

*

Refer to Applicable Thermo Management Wiring Diagram

*2

Refer to the Applicable Heated Seats Wiring Diagram
