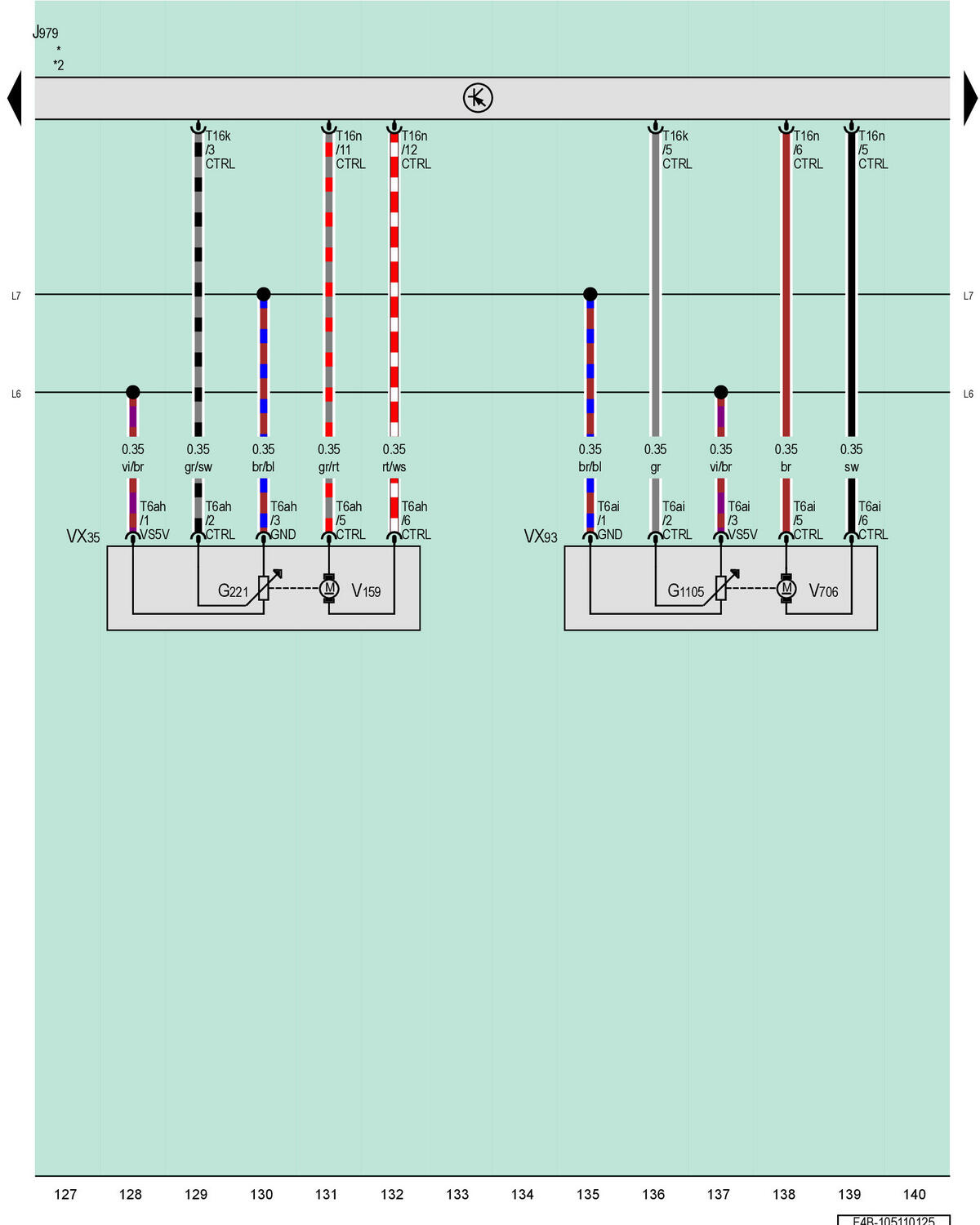

Heating And Air Conditioning Control Module, Right Front Temperature Control Door, Left Front Air Distribution Door

Courtesy of AUDI OF AMERICA, LLC

G221

Right Temperature Control Door Motor Position Sensor

G1105

Left Front Air Distribution Door Motor Position Sensor

J979

Heating and Air Conditioning Control Module

T6ah

6-Pin Connector, Blue

T6ai

6-Pin Connector, Blue

T16k

16-Pin Connector, Black

T16n

16-Pin Connector, Brown

VX35

Right Front Temperature Control Door

VX93

Left Front Air Distribution Door

V159

Right Temperature Control Door Motor

V706

Left Front Air Distribution Door Motor

L6

Connection 2 (in A/C Unit Wiring Harness)

L7

Connection 3 (in A/C Unit Wiring Harness)

*

Refer to Applicable Thermo Management Wiring Diagram

*2

Refer to the Applicable Heated Seats Wiring Diagram
