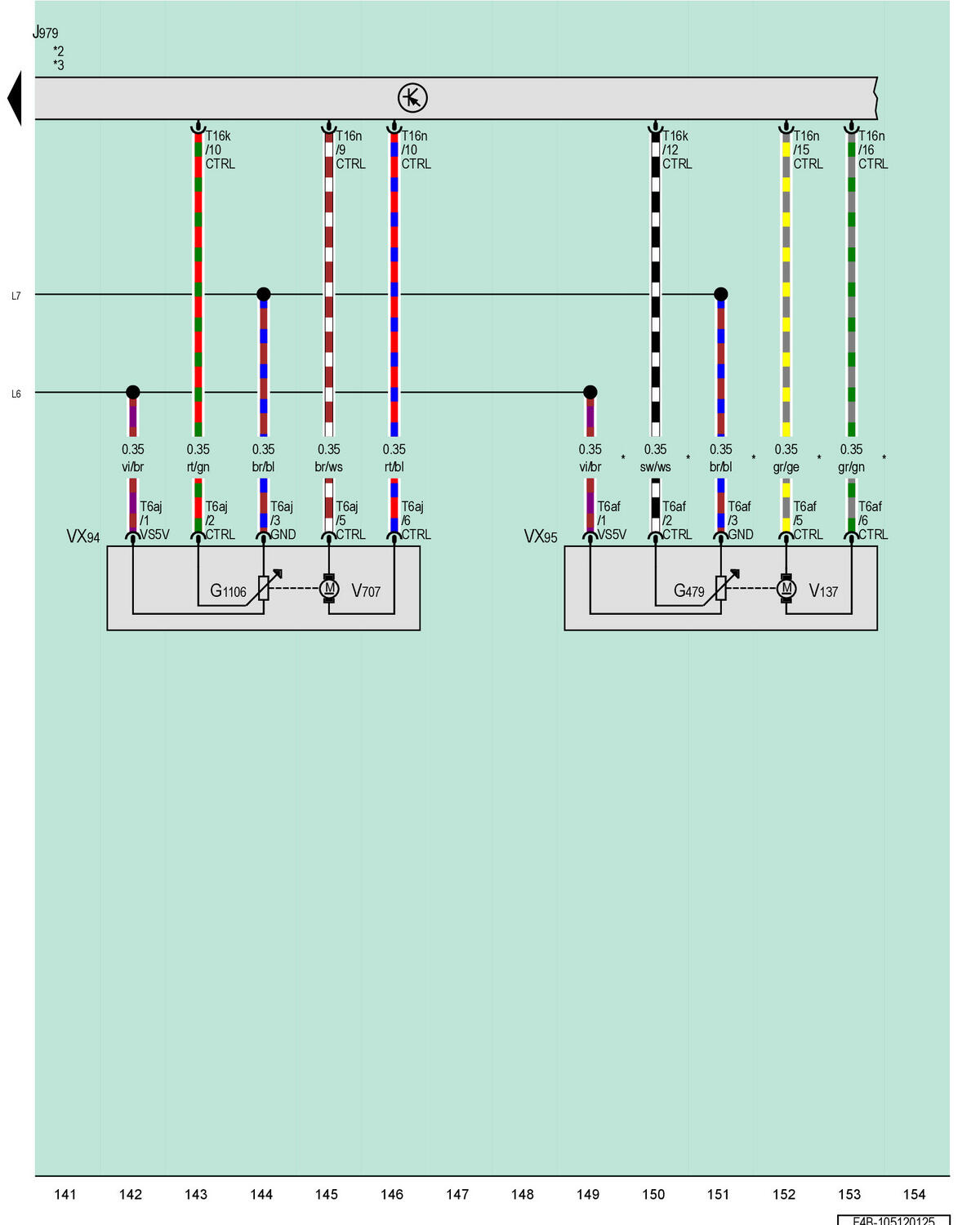

Heating And Air Conditioning Control Module, Right Front Air Distribution Door, Rear Temperature Control Door
G479
Rear Temperature Control Door Motor Position Sensor
G1106
Right Front Air Distribution Door Motor Position Sensor
J979
Heating and Air Conditioning Control Module
T6af
6-Pin Connector, Blue
T6aj
6-Pin Connector, Blue
T16k
16-Pin Connector, Black
T16n
16-Pin Connector, Brown
VX94
Right Front Air Distribution Door
VX95
Rear Temperature Control Door
V137
Rear Temperature Control Door Motor
V707
Right Front Air Distribution Door Motor
L6
Connection 2 (in A/C Unit Wiring Harness)
L7
Connection 3 (in A/C Unit Wiring Harness)
*
For Vehicles with 3-Zone Temperature Control
*2
Refer to Applicable Thermo Management Wiring Diagram
*3
Refer to the Applicable Heated Seats Wiring Diagram
