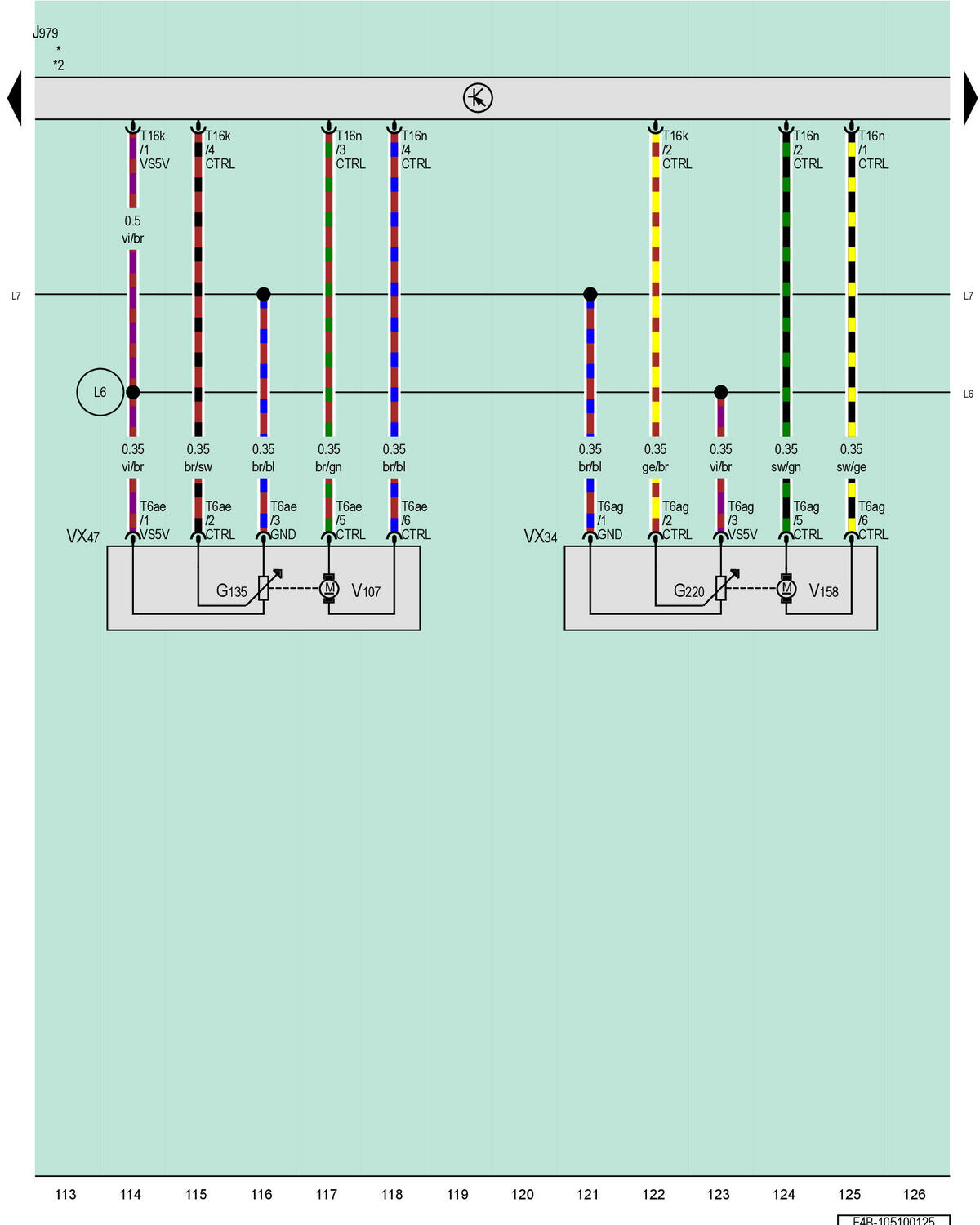

Heating And Air Conditioning Control Module, Left Front Temperature Control Door, Defroster Door

Courtesy of AUDI OF AMERICA, LLC

G135

Defroster Door Motor Position Sensor

G220

Left Temperature Control Door Motor Position Sensor

J979

Heating and Air Conditioning Control Module

T6ae

6-Pin Connector, Blue

T6ag

6-Pin Connector, Blue

T16k

16-Pin Connector, Black

T16n

16-Pin Connector, Brown

VX34

Left Front Temperature Control Door

VX47

Defroster Door

V107

Defroster Door Motor

V158

Left Temperature Control Door Motor

L6

Connection 2 (in A/C Unit Wiring Harness)

L7

Connection 3 (in A/C Unit Wiring Harness)

*

Refer to Applicable Thermo Management Wiring Diagram

*2

Refer to the Applicable Heated Seats Wiring Diagram
