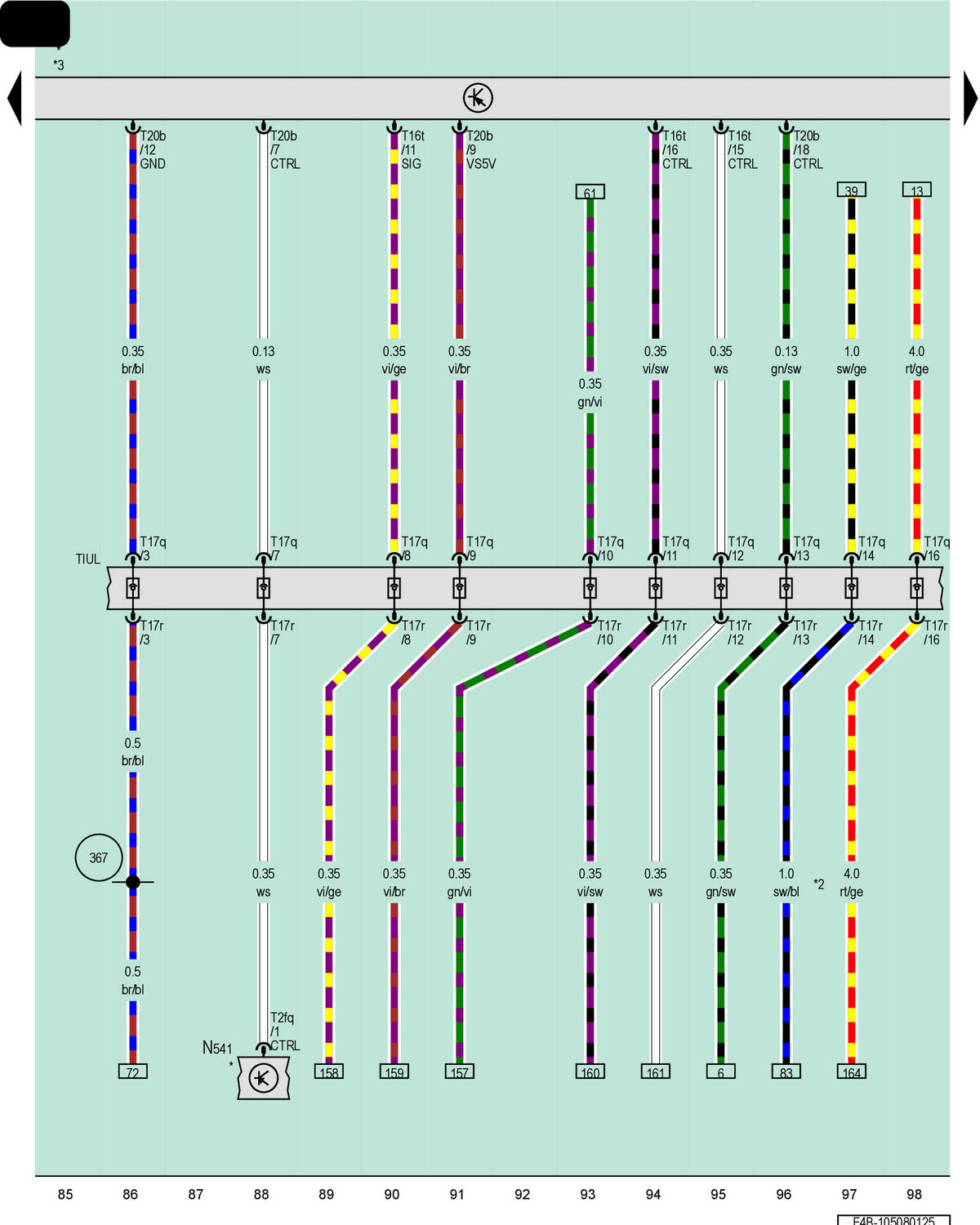

Heating And Air Conditioning Control Module, Heater And A/C Unit Refrigerant Shut-Off Valve

Courtesy of AUDI OF AMERICA, LLC

J979

Heating and Air Conditioning Control Module

N541

Heater and A/C Unit Refrigerant Shut-Off Valve

T2fq

2-Pin Connector, Black

T16t

16-Pin Connector, Blue

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T20b

20-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

367

Ground Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Thermo Management Wiring Diagram

*2

Diameter Depends on Equipment

*3

Refer to the Applicable Heated Seats Wiring Diagram
