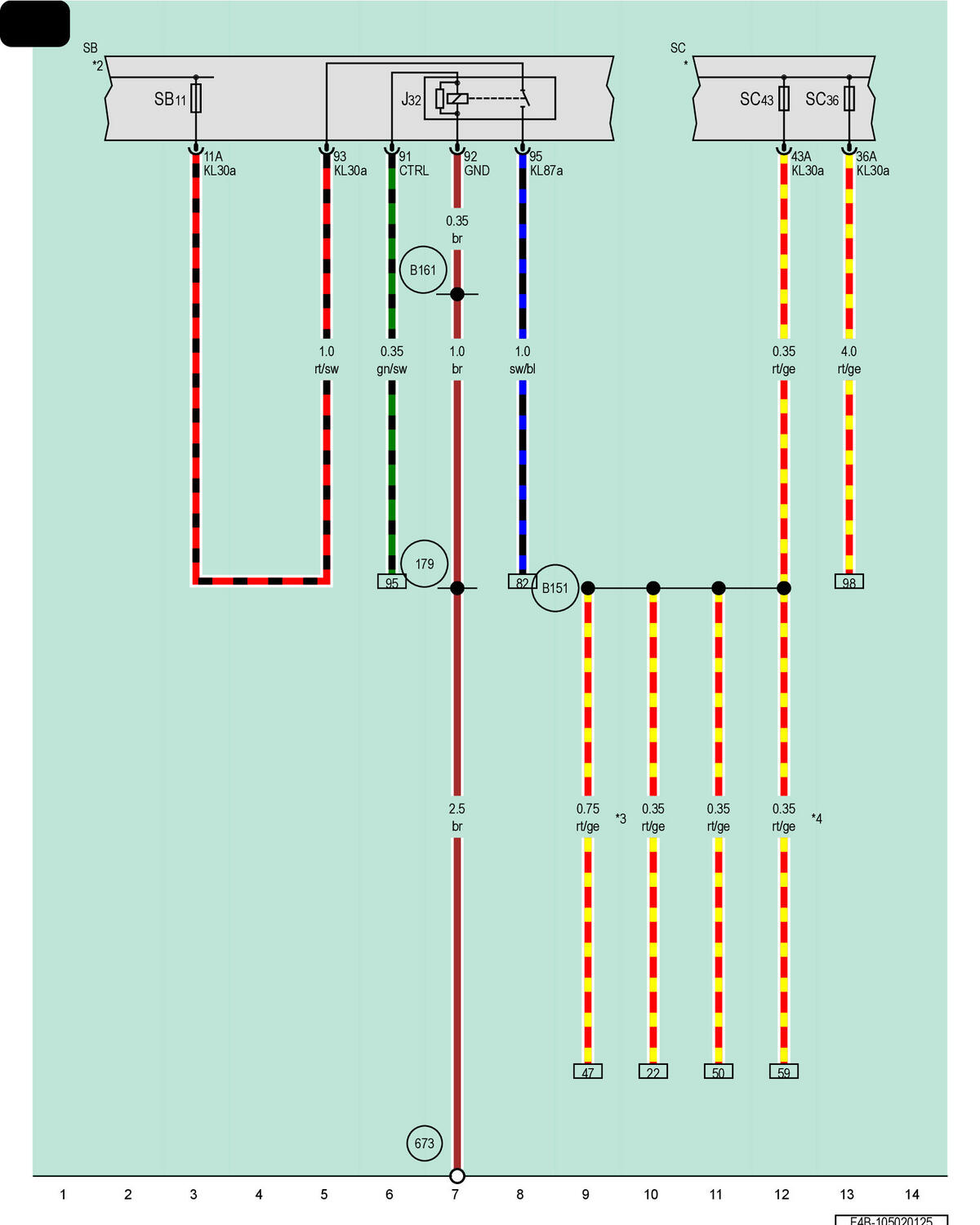

Fuse Panel B, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J32

A/C Relay

SB

Fuse Panel B

SB11

Fuse 11 (On Fuse Panel B)

SC

Fuse Panel C

SC36

Fuse 36 (On Fuse Panel C)

SC43

Fuse 43 (On Fuse Panel C)

179

Ground Connection (in Left Headlamp Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

B161

Connection DWA (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*3

Diameter Depends on Equipment

*4

For Vehicles with Heat Pump
