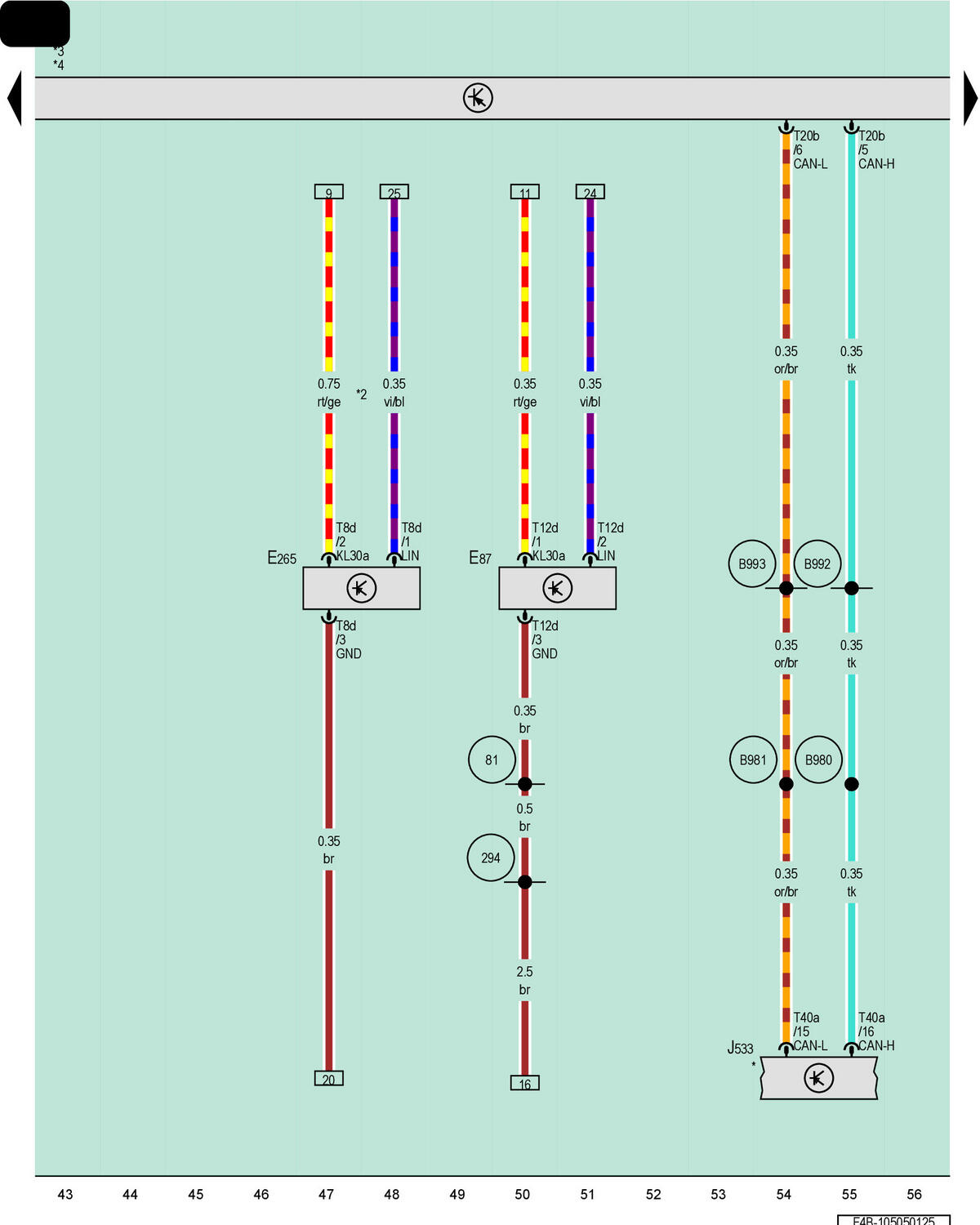

Front A/C Display Control Head, Rear A/C Display Control Head, Data Bus On Board Diagnostic Interface, Heating And Air Conditioning Control Module
E87
Front A/C Display Control Head
E265
Rear A/C Display Control Head
J533
Data Bus on Board Diagnostic Interface
J979
Heating and Air Conditioning Control Module
T8d
8-Pin Connector, Black
T12d
12-Pin Connector, Black
T20b
20-Pin Connector, Black
T40a
40-Pin Connector, Black
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
B980
Connection 1 (CAN Bus, Electric Vehicle, High)
B981
Connection 1 (CAN Bus, Electric Vehicle, Low)
B992
Connection 7 (CAN Bus, Electric Vehicle, High)
B993
Connection 7 (CAN Bus, Electric Vehicle, Low)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
Diameter Depends on Equipment
*3
Refer to Applicable Thermo Management Wiring Diagram
*4
Refer to the Applicable Heated Seats Wiring Diagram
