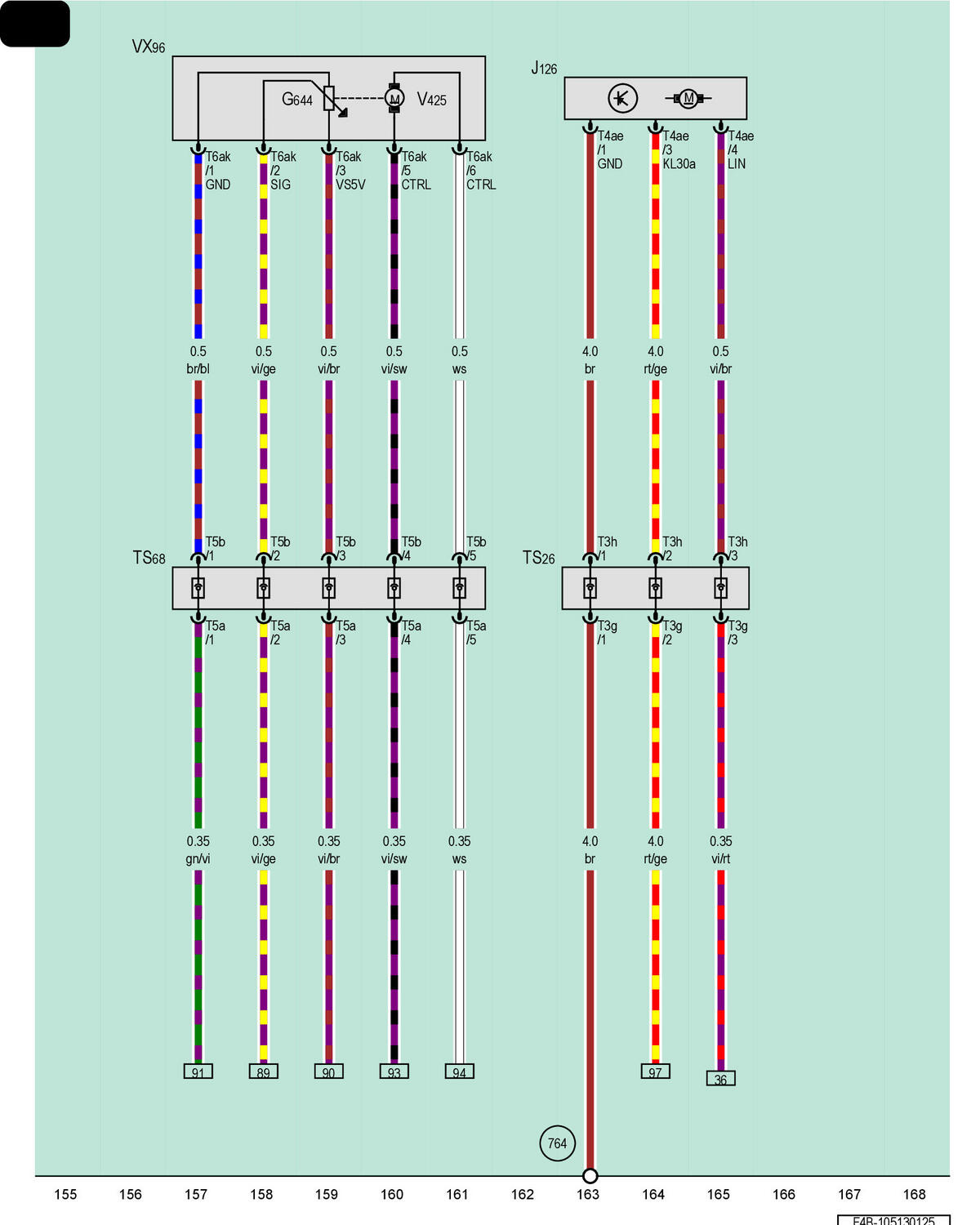

Fresh Air Blower Control Module, Fresh Air/RECIRCULATION Door

Courtesy of AUDI OF AMERICA, LLC

G644

Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor

J126

Fresh Air Blower Control Module

T3g

3-Pin Connector, Black

T3h

3-Pin Connector, Black

T4ae

4-Pin Connector, Black

T5a

5-Pin Connector, Black

T5b

5-Pin Connector, Black

T6ak

6-Pin Connector, Blue

TS26

Blower Coupling Point

TS68

Fresh and Air Recirculation Door Coupling Point

VX96

Fresh Air/Recirculation Door

V425

Fresh Air/Recirculating Air/Back Pressure Door Motor

764

Ground Connection Inside Left Front Wheel Housing
