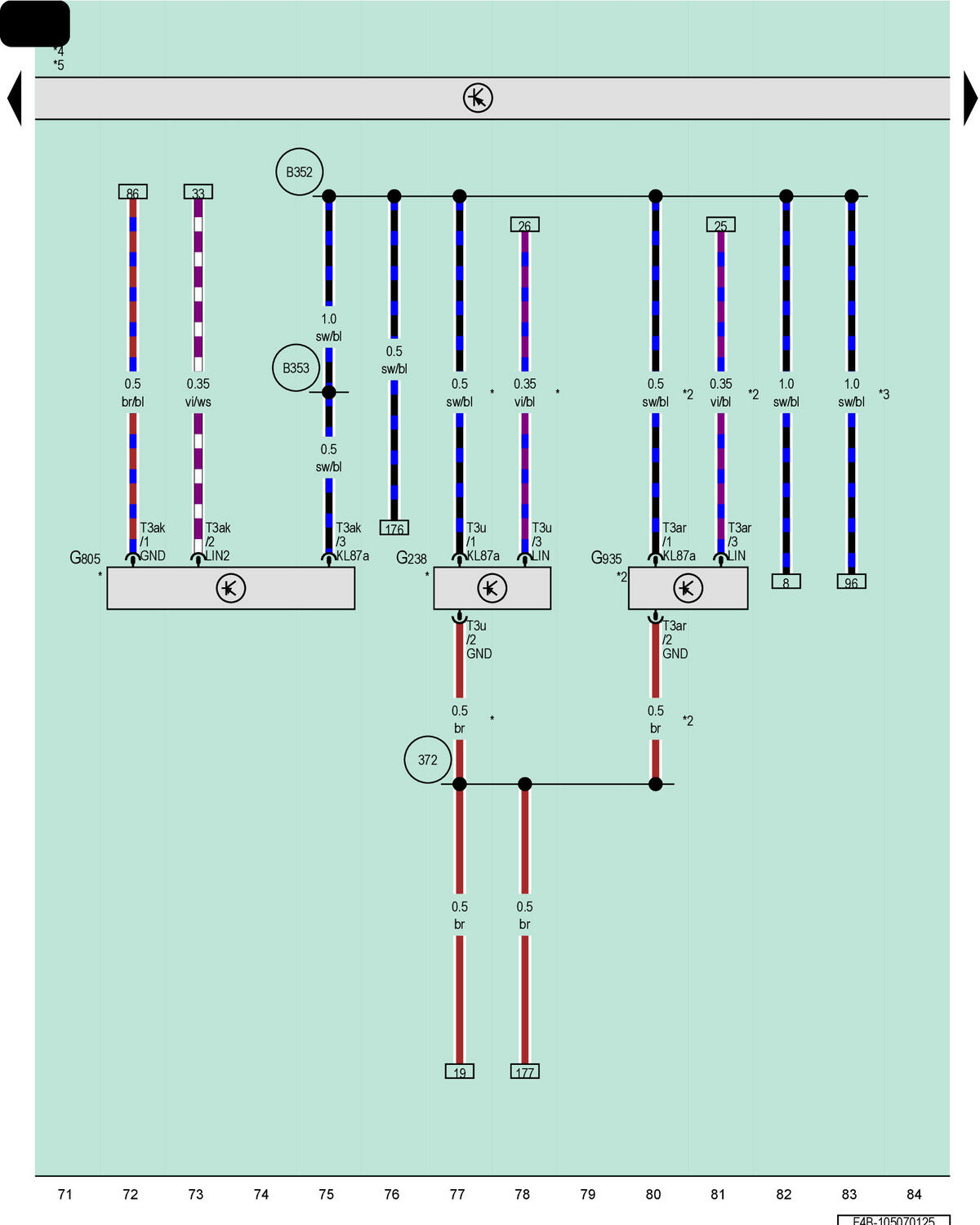

Air Quality Sensor, Refrigerant Circuit Pressure Sensor, Exterior Air Quality And Humidity Sensor, Heating And Air Conditioning Control Module

Courtesy of AUDI OF AMERICA, LLC

G238

Air Quality Sensor

G805

Refrigerant Circuit Pressure Sensor

G935

Exterior Air Quality and Humidity Sensor

J979

Heating and Air Conditioning Control Module

T3ak

3-Pin Connector, Black

T3ar

3-Pin Connector, Brown

T3u

3-Pin Connector, Gray

372

Ground Connection 7 (in Main Wiring Harness)

B352

Positive Connection 3 (87a) (in Main Wiring Harness)

B353

Positive Connection 4 (87a) (in Main Wiring Harness)

*

For Vehicles Without Heat Pump

*2

For Vehicles with Heat Pump

*3

Diameter Depends on Equipment

*4

Refer to Applicable Thermo Management Wiring Diagram

*5

Refer to the Applicable Heated Seats Wiring Diagram
