Overview - Seat Pan

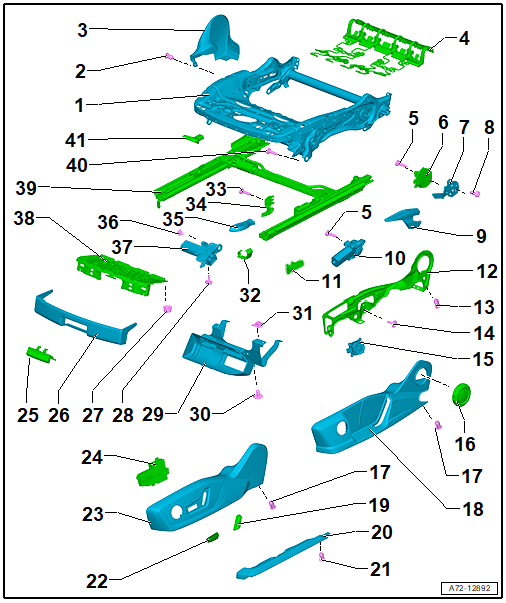

Fig 1: Exploded View Of Seat Pan

Courtesy of AUDI OF AMERICA, LLC

Seat Pan Upper Frame
- Disconnecting the upper from the lower frame. Refer to DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR V28, REMOVING AND INSTALLING .
Expanding Rivet
- Quantity: 2
Inner Seat Trim Panel
- Refer to Inner Seat Trim Panel, Removing and Installing .
Seat Pan Wire Mat
Bolt
- Quantity: 3
- 10 Nm
Seat Height Adjuster
- Equipment version: for the manual seat height adjustment
- Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING, MANUAL SEAT HEIGHT ADJUSTMENT
Lever for Seat Height Adjustment
- Equipment version: for the manual seat height adjustment
- Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING, MANUAL SEAT HEIGHT ADJUSTMENT
Bolt
- Quantity: 2
- 8 Nm
Seat Height Adjustment Handle
- Equipment version: for the manual seat height adjustment
- Refer to Seat Height Adjustment Handle, Removing and Installing .
Seat Height Adjustment Motor
- Equipment version: for the power seat height adjustment
- Driver Seat Height Adjustment Motor -V245- / Front Passenger Seat Height Adjustment Motor -V246-
- Refer to SEAT HEIGHT ADJUSTMENT, REMOVING AND INSTALLING, POWER SEAT HEIGHT ADJUSTMENT
Seat Rail Stop
- Equipment version: front passenger seat only
Seat Trim Panel Bracket
- Refer to Seat Trim Panel Bracket, Removing and Installing .
Expanding Rivet
Bolt
- Quantity: 2
- 8 Nm
Lumbar Support Adjustment Switch Module
- Equipped on some models
- Driver Seat Switch Module -E663-, Front Passenger Seat Switch Module -E664-
- Refer to Lumbar Support Adjustment Switch Module, Removing and Installing .
Backrest Adjustment Wheel Handle
- Equipment version: for the manual backrest adjustment
- Refer to BACKREST ADJUSTMENT WHEEL, REMOVING AND INSTALLING .
Expanding Rivet
Outer Seat Trim Panel
- Equipment version: for the manual seat adjustment
- Refer to Outer Seat Trim Panel, Removing and Installing .
Backrest Adjuster Adjustment Button
- Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD E470/E471, REMOVING AND INSTALLING .
Outer Seat Rail Cover
- Refer to OUTER SEAT RAIL COVER, REMOVING AND INSTALLING
Expanding Rivet
- Pay attention to the different diameter to the expanding rivet -17-
Seat Adjustment Button
- Refer to DRIVER/FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD E470/E471, REMOVING AND INSTALLING .
Outer Seat Trim Panel
- Equipment version: for the power seat adjustment
- Refer to Outer Seat Trim Panel, Removing and Installing .
Seat Adjustment Control Head
- Equipment version: for the power seat adjustment
- Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-
Seat Depth Adjuster Handle
- Equipped on some models
- Refer to Seat Depth Adjuster, Removing and Installing .
Seat Depth Adjuster Trim
- Equipped on some models
- Refer to Seat Depth Adjuster, Removing and Installing .
Nut
- Quantity: 4
- Replace after removing
- 6 Nm
Bolt
- Self-locking
- Quantity: 2
- Replace after removing
- 10 Nm
Fire Extinguisher Mount
- Equipped on some models
- Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING
Bolt
- Quantity: 4
- 8 Nm
Spring Nut
- Quantity: 2
Front and Rear Seat Rail Cover
- Quantity: 4
- Refer to FRONT AND REAR SEAT RAIL COVER, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- 8 Nm
Seat Angle Adjuster Lever
- Equipment version: for the manual seat angle adjuster
- Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING, MANUAL SEAT ANGLE ADJUSTMENT
Seat Angle Adjuster Handle
- Equipment version: for the manual seat angle adjuster
- Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING, MANUAL SEAT ANGLE ADJUSTMENT
Bolt
- Self-locking
- Replace after removing
- 20 Nm
Seat Angle Adjustment Motor
- Equipment version: for the power seat angle adjuster
- Driver Seat Angle Adjustment Motor -V243- / Front Passenger Seat Angle Adjustment Motor -V244-
- Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING, POWER SEAT ANGLE ADJUSTMENT
Seat Depth Adjuster
- Equipped on some models
- Refer to Seat Depth Adjuster, Removing and Installing .
Seat Pan Lower Frame
- Equipment version with power seat forward/back adjustment includes: Driver Seat Forward/Back Adjustment Motor -V28- / Front Passenger Seat Forward/Back Adjustment Motor -V31-.
- Disconnecting the upper from the lower frame. Refer to DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR V28, REMOVING AND INSTALLING .
Bolt
- Self-locking
- Quantity: 4
- Replace after removing
- 22 Nm
Seat Forward/Back Adjustment Handle
- Equipment version: for the manual seat forward/back adjustment
- Replace after removing
- Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING
