Overview - Front Seat

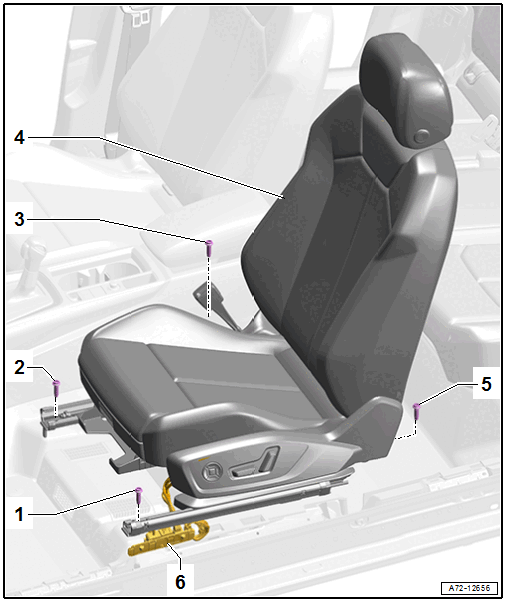

Fig 1: Identifying Front Seat Components

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 40 Nm
Bolt
- 40 Nm
Bolt
- 40 Nm
Front Seat
- Refer to Front Seat, Removing and Installing .
Bolt
- 40 Nm
Connector
- For modular wiring routing
- Modular Wiring Routing, Disconnecting and Connecting. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .
