Overview - Underbody Trim Panels

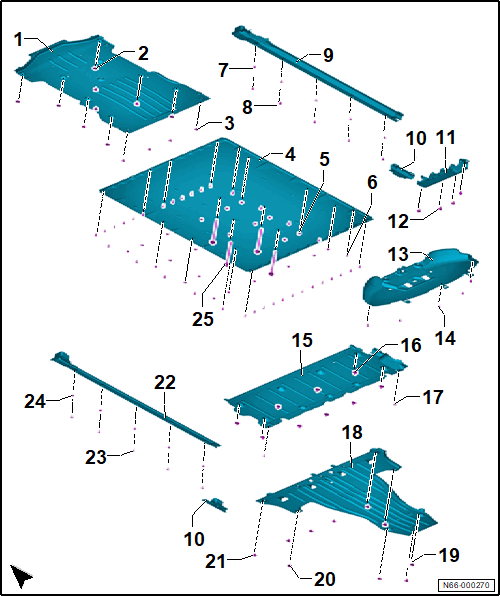

Fig 1: Exploded View Of Under Body Trim Panels, 55 KWH
GWWN66-000270Courtesy of AUDI OF AMERICA, LLC
  1. Front Underbody Panel
  2. Bolt
    • Quantity: 9
    • 2 Nm
  3. Clip
    • Quantity: 4
  4. High-Voltage Battery Impact Guard
  5. Bolt
    • Depending on the equipment/version, the repair stages of the bolt are available depending on the version of the high-voltage battery. Refer to the Electronic Parts Information (ETKA).
    • Quantity: 35
    • Replace after removing
    • Refer to High-Voltage Battery Impact Guard, Removing and Installing  .
    • Serial condition = 8 Nm
    • Repair stage 1 = 5 Nm
    • Repair stage 2 = 8 Nm
  6. Nut
    • Quantity: 22
    • 8 Nm +30°
  7. Expanding Nut
    • Quantity: 5
    • Replace after removing
  8. Bolt
    • Quantity: 5
    • 2 Nm
  9. Side Underbody Trim Panel/Side Impact Guard
  10. Cover
  11. Impact Guard
  12. Bolt
    • Quantity depends on the equipment/version
    • Quantity: 3 or 4
    • M8 or M10
    • M8 = 20 Nm
    • M10 = 55 Nm
  13. Rear Underbody Trim Panel
  14. Bolt
    • Quantity depends on the equipment/version
    • Quantity: 5 or 9
    • 2 Nm
  15. Center Underbody Trim Panel
  16. Nut
    • Quantity: 9
    • 2 Nm
  17. Expanding Nut
    • Quantity: 2
  18. Rear Center Underbody Trim Panel
  19. Clip
    • Quantity: 3
  20. Bolt
    • Quantity: 2
    • 8 Nm
  21. Bolt
    • Quantity: 5
    • 2 Nm
  22. Side Underbody Trim Panel/Side Impact Guard
  23. Bolt
    • Quantity: 5
    • 2 Nm
  24. Expanding Nut
    • Quantity: 5
    • Replace after removing
  25. Bolt
