Overview - Spoiler

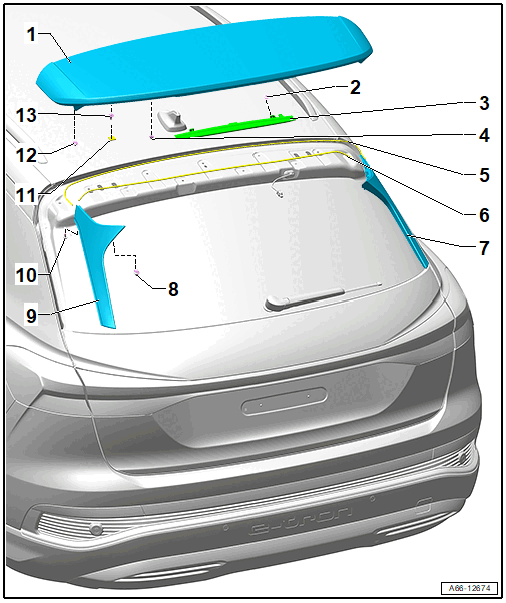

Fig 1: Exploded View Of Spoiler, Q4

Courtesy of AUDI OF AMERICA, LLC

Spoiler
- Refer to Spoiler, Removing and Installing .
Bolt
- Quantity: 2
- Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP, Q4 E-TRON .
High-Mounted Brake Lamp
- Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP, Q4 E-TRON .
Nut
- Quantity: 4
- 6 Nm
Foam Seal
- Front
Foam Seal
- Rear
Spoiler
- Side
- Right
- Refer to Side Spoiler, Removing and Installing .
Clip
- With foam seal
Spoiler
- Side
- Left
- Refer to Side Spoiler, Removing and Installing .
Bolt
- 2.5 Nm
Foam Seal
- For the securing pin
- Quantity: 3
Clip
- With foam seal
- Quantity: 2
Clip
- With foam seal
- Quantity: 5
