Overview - Spoiler

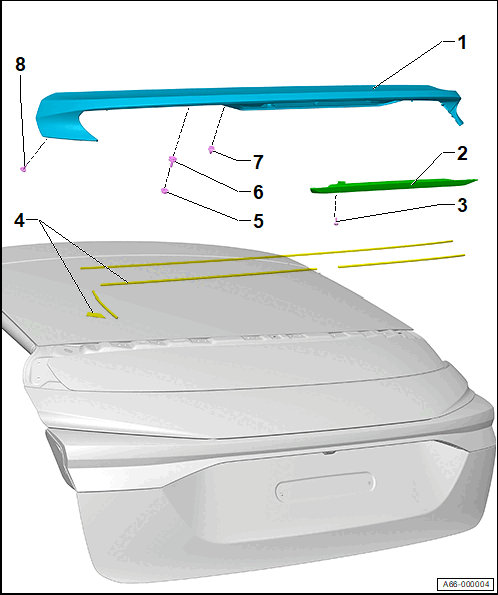

Fig 1: Exploded View Of Spoiler, Q4 Sportback

Courtesy of AUDI OF AMERICA, LLC

Spoiler
- Refer to Spoiler, Removing and Installing .
High-Mounted Brake Lamp
- Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP, Q4 E-TRON SPORTBACK .
Bolt
- Quantity: 2
- Refer to OVERVIEW - HIGH-MOUNTED BRAKE LAMP, Q4 E-TRON SPORTBACK .
Foam Seal
Nut
- Quantity: 6
- Replace after removing
- 6 Nm
Threaded Stud
- With foam seal
- Quantity: 6
Clip
- With foam seal
- Quantity: 2
Bolt
- Left and right
- Quantity: 4
- Replace after removing
- 2 Nm
