Overview - Roof Railing

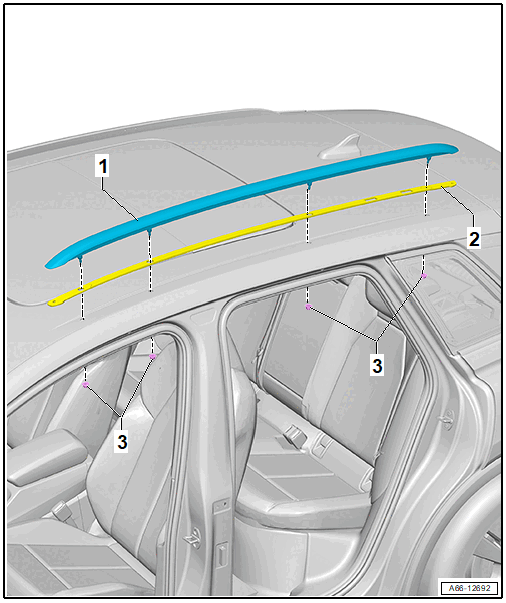

Fig 1: Identifying Roof Railing Components

Courtesy of AUDI OF AMERICA, LLC

Roof Railing
- Refer to Roof Railing, Removing and Installing .
Seal
Nut
- Quantity: 4
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.

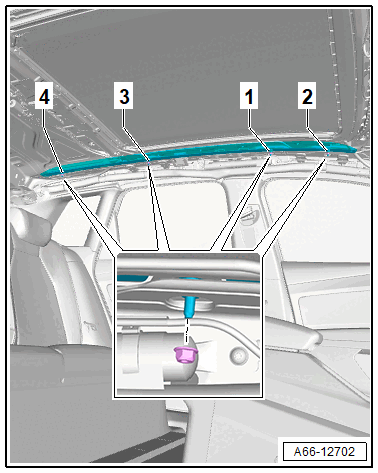

Fig 2: Roof Railing Tightening Specification And Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Tightening sequence	Tightening Specification
-1- through -4-	9 Nm
