Overview - Side Sill Trim Panel

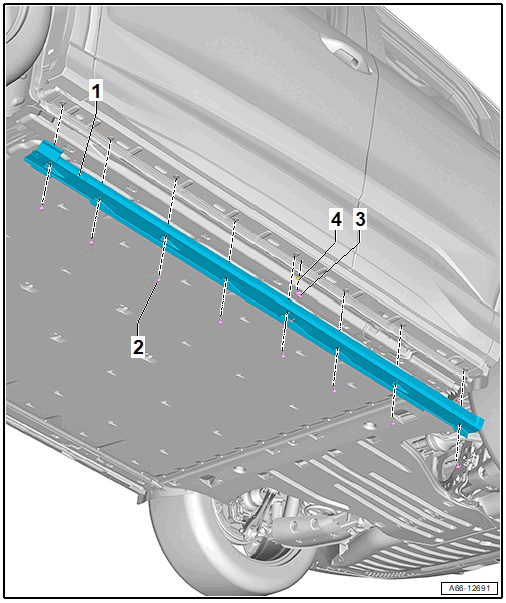

Fig 1: Identifying Side Sill Trim Panel Components
GWWA66-12691Courtesy of AUDI OF AMERICA, LLC
  1. Side Sill Trim Panel
  2. Bolt
    • Quantity: 8
    • 2 Nm
  3. Clip
  4. Grommet
